Full Color TFT LCD Displays
US Micro Products offers over 225 TFT LCD display modules spanning 0.96" to 84" diagonal, covering IPS, TN, and MVA panel types with every major interface standard. Whether your application requires a compact wearable screen or a large-format industrial monitor, our TFT lineup provides the performance and flexibility OEM engineers demand.
TFT Display Types
Ultra High Definition 4K
Modules for applications demanding extra sharpness and visual impact. Ideal for medical imaging, digital signage, and high-end industrial HMIs where detail clarity directly affects operator decisions and sourcing reliability matters.
IPS (In-Plane Switching)
Superior contrast and color accuracy with wide viewing angles (170°+). The standard for medical, automotive, and multi-operator industrial systems where consistent visibility from any position is critical to operations.
FFS (Fringe Field Switching)
Advanced IPS variant delivering better transmittance and lower power consumption. Preferred for battery-powered devices and applications where optical efficiency reduces total cost of ownership.
MVA (Multi-Domain Vertical Alignment)
Extra-wide viewing angles with deep blacks and contrast ratios exceeding 3000:1. Effective in automotive dashboards, outdoor displays, and medical monitors where high contrast improves readability.
TN (Twisted Nematic)
Fastest response times at the most competitive price point. The reliable, cost-effective choice for single-operator instrumentation, readouts, and high-volume applications where procurement targets aggressive unit costs.
Sunlight Readable (High Brightness)
1,000+ nit displays with AR/AG coatings and optical bonding for full outdoor visibility. Engineered for military, marine, and outdoor industrial environments where display legibility is mission-critical.
Wide Temperature Range
Operating from -30°C to +85°C with specialized backlights. Built for extreme environments — oil & gas, aerospace, arctic/desert deployments — where standard displays fail.
Touch-Enabled TFT
Capacitive (PCAP) and resistive touch panels integrated directly. Eliminates separate touch sourcing, simplifies your BOM, and reduces integration risk for a streamlined procurement process.
Product Catalog
Showing 1–20 of 202 products
| Size | Part Number | Resolution | Interface | Brightness | Temp Range | Touch | Actions |
|---|---|---|---|---|---|---|---|
| 2.4" | USMP-LPS-T024-024032MFW-B1 | 240 x 320 | MCU | 350 | -20°C ~ 70°C | CTP | |
| 5" | USMP-LPS-T050-080048MFD-A1 | 800 x 480 | RGB | 800 | -30°C ~ 85°C | CTP | |
| 7" | USMP-LPS-T070-128076MFW-A0 | 1280 x 768 | LVDS | 1300 | -30°C ~ 85°C | CTP | |
| 10.1" | USMP-LPS-T101-128080MFD-A1 | 1280 x 800 | MIPI | 1000 | -30°C ~ 85°C | CTP | |
| 5"" | USMP-OPS-T050-080048MFW-J0 | 800 x 480 | MIPI | 800 | -30°C ~ 85°C | CTP | |
| 7"" | USMP-OPS-T070-080048MFW-G0 | 800 x 480 | MIPI | 850 | -30°C ~ 85°C | CTP | |
| 7"" | USMP-OPS-T070-080048MFW-H0 | 800 x 480 | MIPI | 850 | -30°C ~ 85°C | CTP | |
| 7"" | USMP-OPS-T070-080048MFW-I0 | 800 x 480 | MIPI | 850 | -30°C ~ 85°C | CTP | |
| 7"" | USMP-OPS-T070-080048MFW-J0 | 800 x 480 | MIPI | 850 | -30°C ~ 85°C | CTP | |
| 10.1"" | USMP-OPS-T101-128072MFW-A0 | 1280 x 720 | MIPI | 800 | -30°C ~ 85°C | CTP | |
| 0.96" | USMP-T010-008016UFW-A0 | 80 x 160 | SPI | 200 | -20°C ~ 70°C | N/A | |
| 0.99" | USMP-T010-012011UFW-A0 | 128 x 115 | SPI/MCU | 350 | -20°C ~ 70°C | N/A | |
| 1.14" | USMP-T011-013024CDZ-A0 | 135 x 240 | SPI | 200 | -20°C ~ 70°C | CTP | |
| 1.28" | USMP-T013-024024CDZ-A0 | 240 x 240 | MCU | 300 | -20°C ~ 70°C | CTP | |
| 1.3" | USMP-T013-024024UFW-A0 | 240 x 240 | SPI/MCU | 350 | -20°C ~ 70°C | N/A | |
| 1.3" | USMP-T013-024024UFW-B0 | 240 x 240 | SPI/MCU | 500 | -10°C ~ 60°C | N/A | |
| 1.44" | USMP-T014-012012MFW-A0 | 128 x 128 | MCU 8-BIT | 200 | -20°C ~ 70°C | N/A | |
| 1.54" | USMP-T015-024024CDZ-A0 | 240 x 240 | SPI | 300 | -20°C ~ 70°C | CTP | |
| 1.5" | USMP-T015-032032MFW-A0 | 320 x 320 | MIPI 1-LANE | 380 | -20°C ~ 70°C | N/A | |
| 1.54" | USMP-T015-032032NFW-A0 | 320 x 320 | 1-LANE MIPI | 380 | -20°C ~ 70°C | N/A |
202 of 202 products match your filters. Request a custom configuration
About Our TFT LCD Displays
As a leading TFT LCD manufacturer, we offer a comprehensive range of display options engineered to meet the sourcing demands of OEM procurement — reliable supply, proven quality, and competitive pricing across every interface and configuration:
MCU (Microcontroller Unit)
Direct connection to 8-bit or 16-bit microcontrollers. The simplest integration path for compact displays, minimizing BOM cost and firmware complexity.
MPU (Microprocessor Unit)
Parallel bus interface for microprocessor-based systems requiring higher throughput than MCU mode.
RGB (Parallel)
Available in 8-bit, 16-bit, 18-bit, and 24-bit configurations. Direct pixel-clock interface providing high bandwidth for displays up to ~1024×600. Standard in embedded systems with dedicated LCD controllers.
SPI
Serial Peripheral Interface for small, low-resolution displays. Minimal pin count reduces PCB complexity and cost — ideal for microcontroller-driven applications.
LVDS
Low-Voltage Differential Signaling for medium to large panels. Excellent noise immunity over longer cable runs, standard in industrial and medical equipment where signal integrity is critical.
TTL
Transistor-Transistor Logic interface for direct digital connection. Common in legacy industrial systems and applications requiring straightforward, well-documented interfacing.
CMOS
Low-power digital interface compatible with modern CMOS-based controllers and processors.
MIPI DSI
Mobile Industry Processor Interface. High-bandwidth serial link standard in mobile processors and modern SoCs. Available in 1, 2, or 4 lane configurations.
Custom Engineering
Customization Options
Every TFT display in our catalog can serve as a starting point for customization. Common modifications include:
Brightness enhancement
High-brightness LED backlights for outdoor and sunlight-readable applications (1,000+ nits)
Optical bonding
Eliminate the air gap between cover glass and LCD to improve contrast, reduce reflections, and enhance shock resistance
Custom cover glass
Chemically strengthened glass, anti-glare coatings, anti-fingerprint treatments, custom printing, and bezels
Extended temperature range
Wide-temp backlights for -30°C to +85°C operation
Interface conversion
Modify or add interface boards to match your system requirements
Custom FPC/connector
Tailored flex cables and connector types for your mechanical design
EMI shielding
Conductive coatings and gaskets for sensitive military and medical environments
Our engineers will evaluate your requirements and recommend the optimal configuration.
Applications

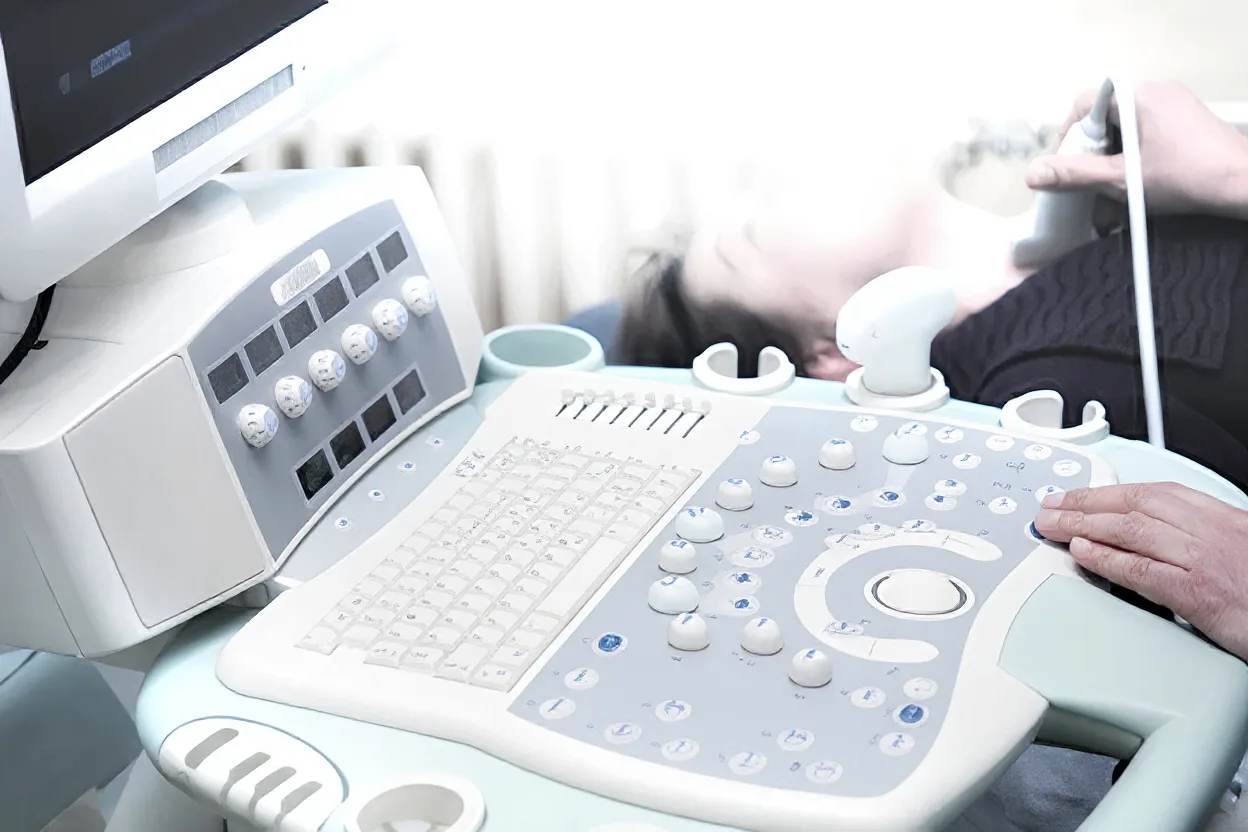

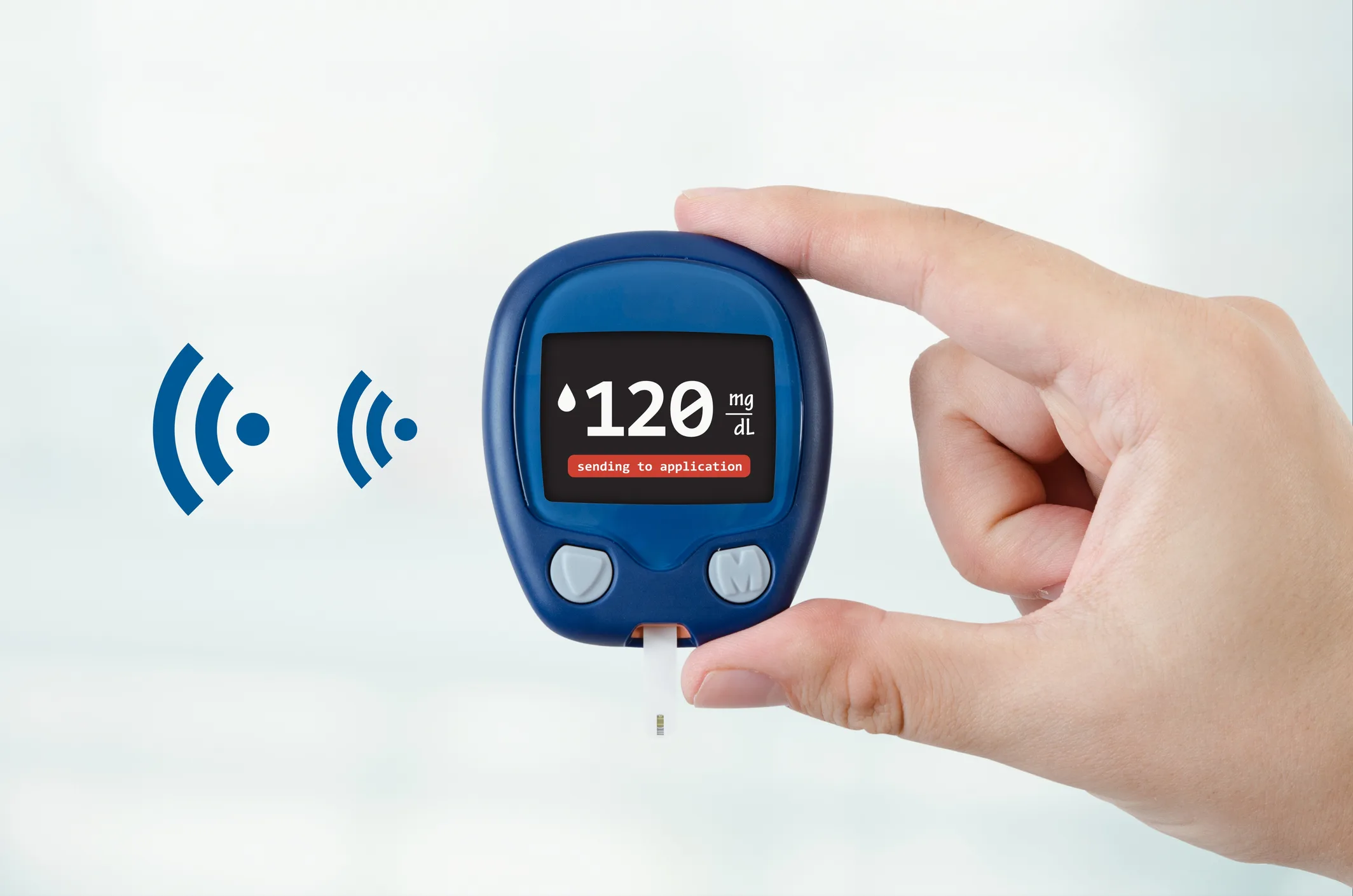

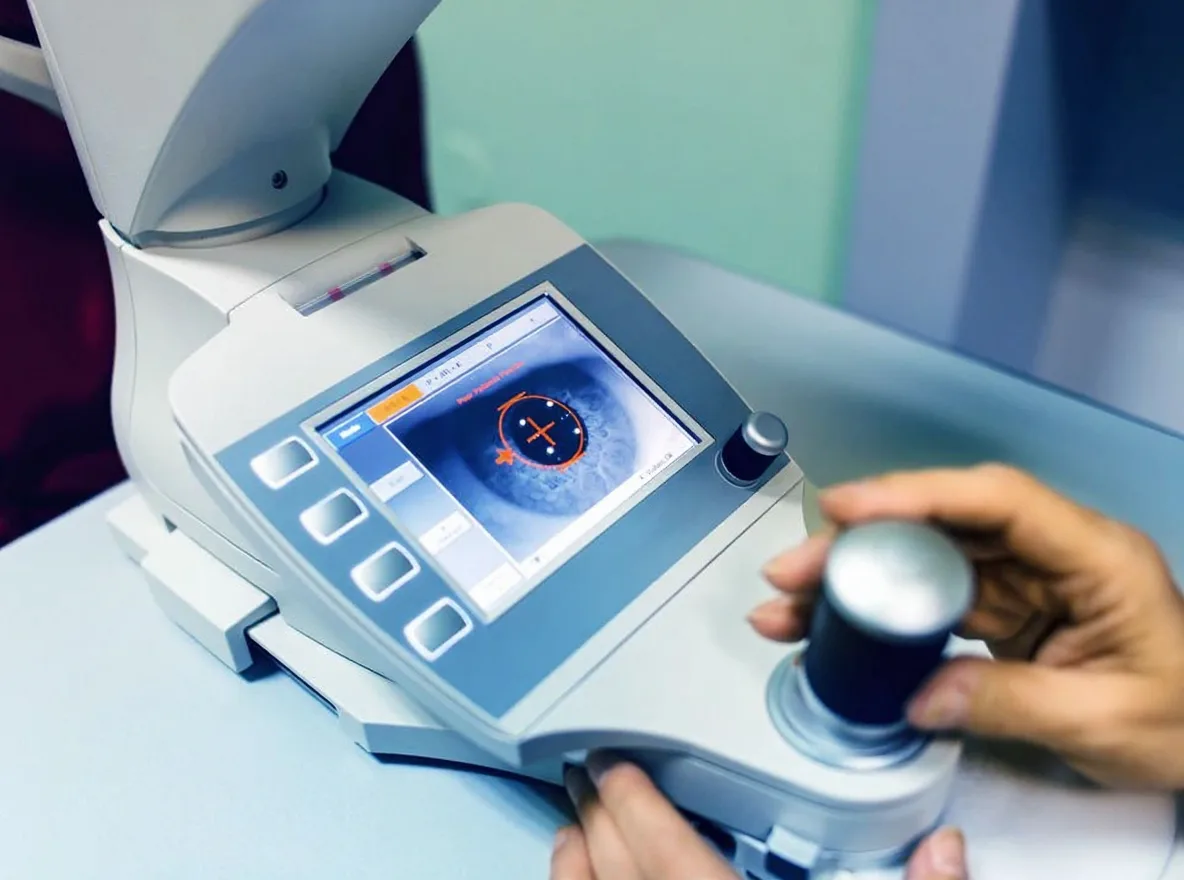

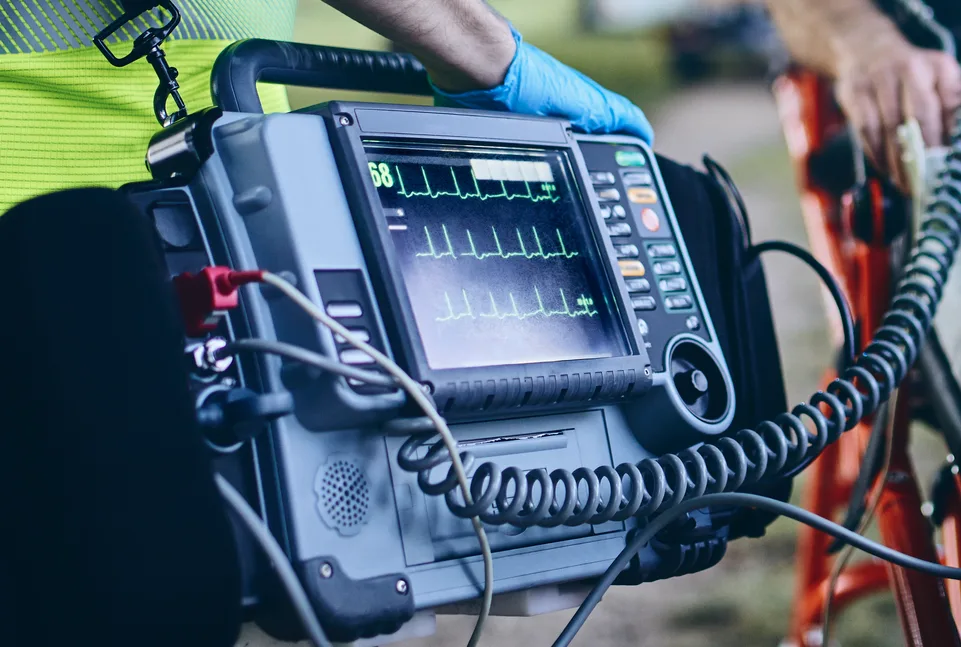

Medical
Patient monitors, surgical displays, diagnostic imaging, portable medical devices

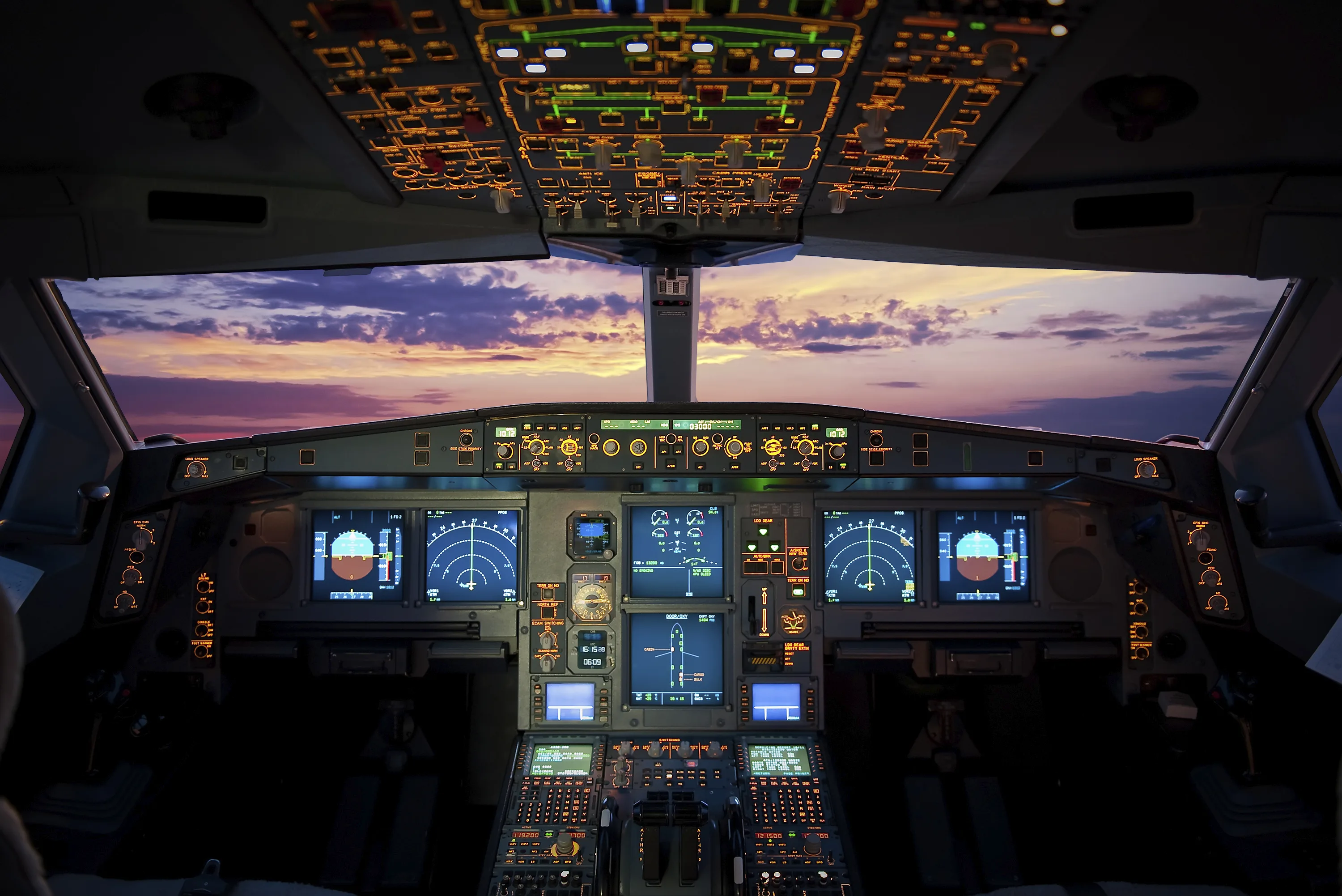

Learn moreMilitary
Rugged field displays, NVIS-compatible cockpit panels, C4ISR systems
Learn moreIndustrial
HMI panels, process control, factory automation, CNC equipment

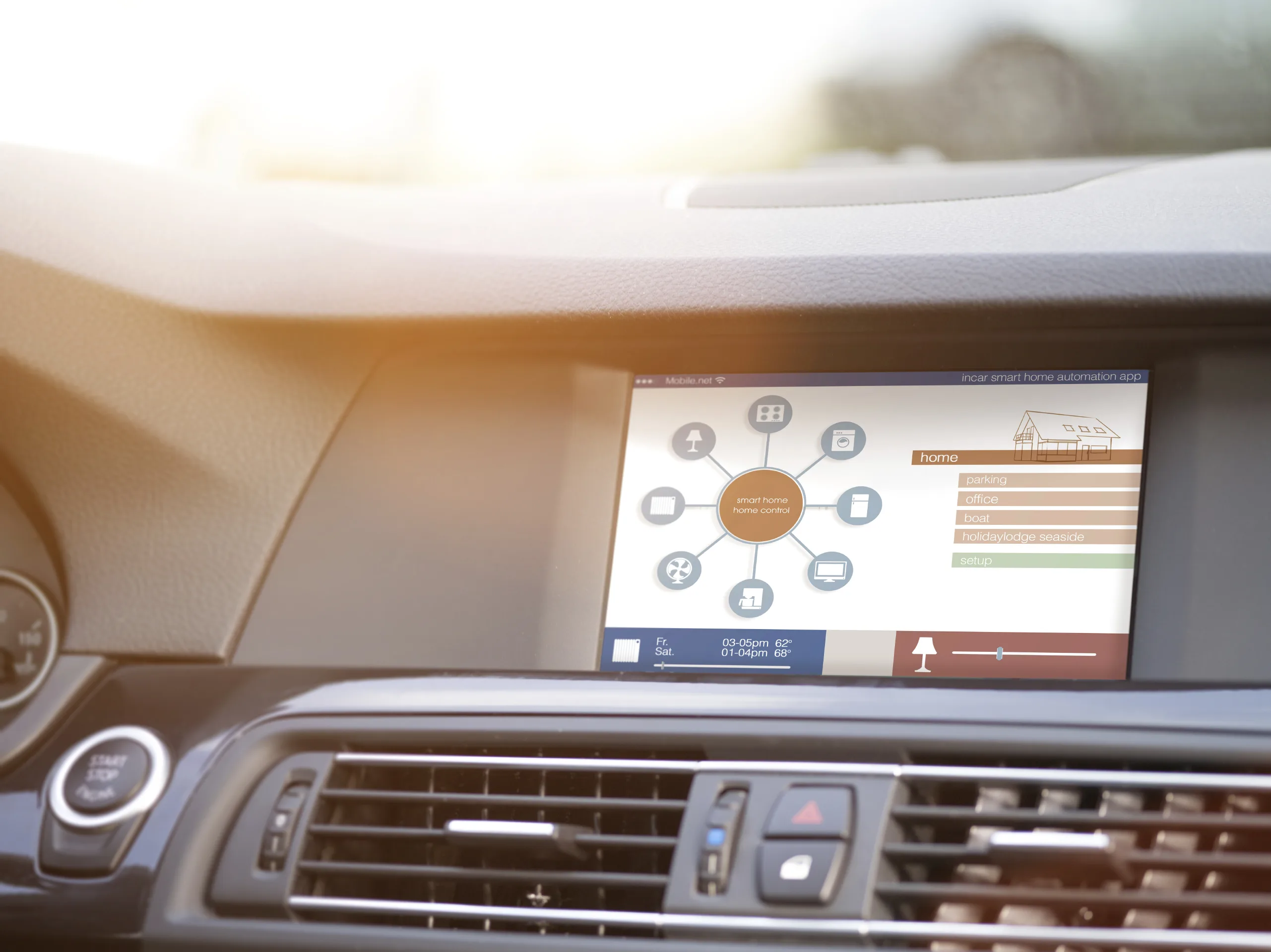

Learn moreAutomotive
Dashboard clusters, center stacks, rearview camera monitors
Learn moreGaming
Slot machines, casino terminals, arcade cabinets
Learn moreConsumer
Smart home displays, self-service kiosks, consumer appliance interfaces
Learn moreKiosk & POS
Self-service terminals, point-of-sale displays, digital signage
Learn more
Engineering and Supply Chain Solutions for TFT Displays
Every TFT display in our catalog can be enhanced, customized, or supported through our full range of engineering and supply chain solutions — designed to simplify procurement and reduce integration risk:
Custom Display Engineering
Our EDSP process tailors TFT display choices around optical, mechanical, and electrical requirements.
Learn more

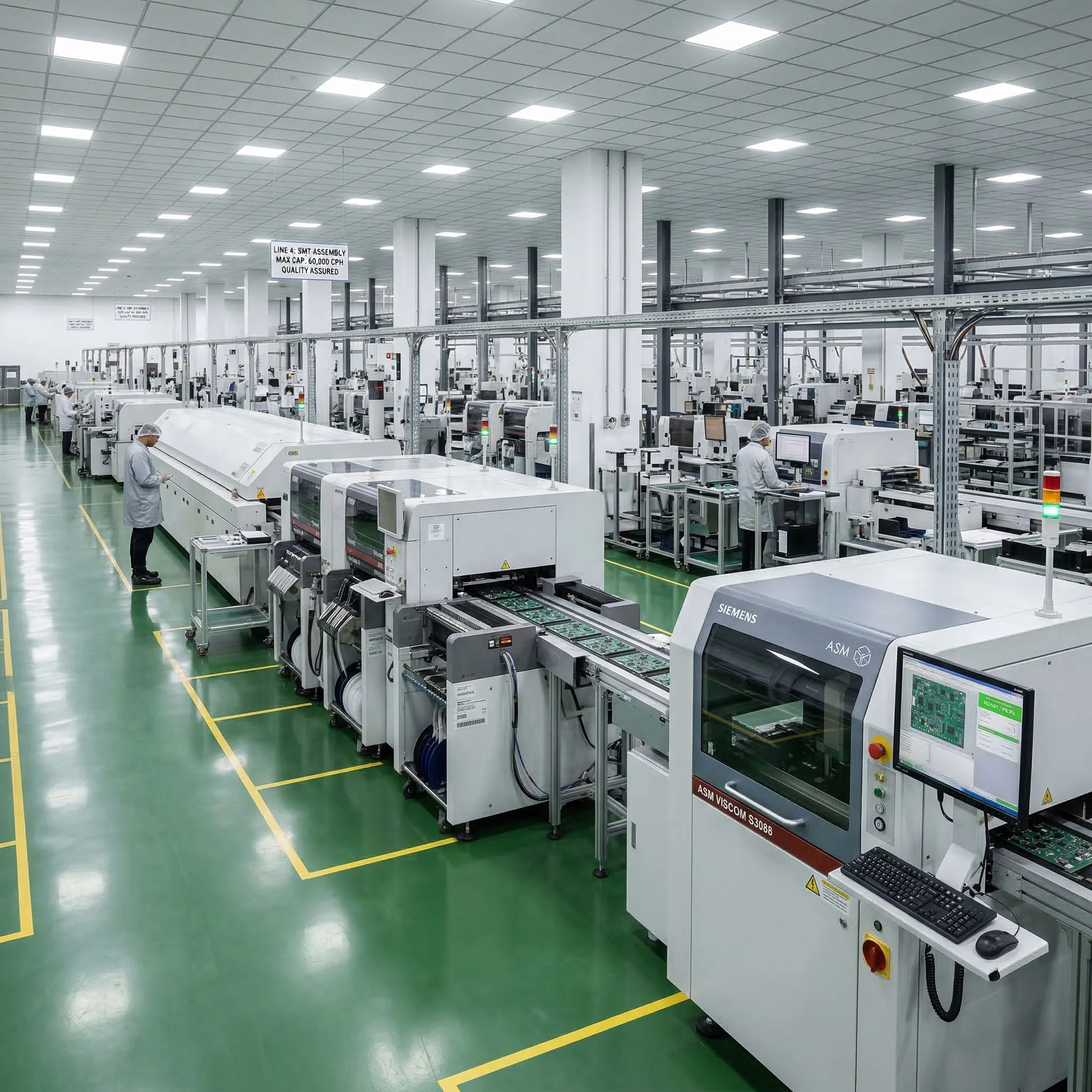

Electronic Manufacturing Services
SMT assembly, COB bonding, and box build for complete display module production.
Learn more
Display Integration
Optical bonding, open frame monitor assembly, and custom housing for turnkey display solutions.
Learn more
Supply Chain Management
Inventory management and logistics ensuring stable availability and competitive lead times.
Learn more
Sunlight Readable Displays
High-brightness backlights, AR/AG coatings, and optical bonding for outdoor and high-ambient-light environments.
Learn more
Ruggedized Displays
Wide temperature, vibration-resistant, and IP-rated displays for demanding industrial and military environments.
Learn more
Touch Screen Integration
PCAP, resistive, SAW, and IR touch integration for interactive TFT display applications.
Learn more
EOL Display Replacement
Cross-reference, redesign, and lifecycle management when your current TFT display reaches end of life.
Learn moreWhy Choose Us
Why Choose US Micro Products for TFT Displays
Decades of display engineering expertise, direct manufacturer partnerships, and a relentless focus on your success.
Breadth of selection
With 225+ standard modules across every major size, resolution, and interface, you start from a strong baseline before any customization.
Engineering support
Our team evaluates your optical, mechanical, electrical, and environmental requirements and recommends the optimal panel — not just what's in stock.
Lifecycle management
We manage panel sourcing, EOL transitions, and second-source qualification to support production continuity.
Custom without the NRE
Many modifications — cover glass, bonding, backlight upgrades — require no tooling charges, just engineering expertise.
