Graphic LCD Displays
Browse 21+ graphic LCD display modules from 2.49" to 5.91". Dependable, inexpensive, customizable. STN/FSTN glass. Ideal for industrial, medical, automotive and more. Request specs today.
Dependable, Inexpensive, Functional, Customizable
US Micro Products offers 21+ graphic LCD display modules from 2.49" to 5.91", serving OEMs across the wearable, medical, gaming, military, industrial, consumer, kiosk, automotive, and aerospace markets.
Graphic LCD Features
Low Cost, High Value
A cost-effective graphical display option for budget-sensitive programs while supporting procurement pricing targets.
Efficient Design-In
Straightforward SPI, 6800, 8080, and 4-bit/8-bit parallel interfaces support efficient integration and reduced engineering effort.
STN and FSTN Glass
STN for cost-effective applications, FSTN for superior contrast with white LED backlights. Both technologies available across multiple sizes and resolutions.
Harsh Environment Ready
Designed to operate under harsh conditions with extended temperature ranges up to -20°C to 70°C — suitable for industrial, outdoor, and demanding environments.
Product Catalog
Showing 1–20 of 20 products
| Size | Part Number | Resolution | Module Size | Viewing Area | Operating Temp. | Viewing Angle | Backlight Type | LED Color | System Interface | Glass | Touch Panel | Image | Actions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.49" | USMP-S025-128064NEN-A0 | 128 x 64 | 70.2 x 43 x 6 | 55 x 27.48 | 0°C ~ 50°C | 40 / 45 / 45 / 40 | LED | White | SPI | FSTN | N/A | POS | |
| 2.61" | USMP-S026-128064NEN-A0 | 128 x 64 | 70.2 x 40.5 x 5.85 | 55 x 27.48 | -20°C ~ 70°C | 40 / 45 / 45 / 40 | LED | White | SPI | FSTN | N/A | POS | |
| 2.61" | USMP-S026-128064NEN-A0 | 128 x 64 | 70.2 x 43 x 6 | 55 x 27.48 | 0°C ~ 50°C | 40 / 45 / 55 / 45 | LED | White | SPI | STN | N/A | NEG | |
| 2.61" | USMP-S026-128064NEN-B0 | 128 x 64 | 70.2 x 40.5 x 5.85 | 55 x 27.48 | -20°C ~ 70°C | 40 / 45 / 45 / 40 | LED | Blue | SPI | FSTN | N/A | POS | |
| 2.61" | USMP-S026-128064NEN-B0 | 128 x 64 | 86.2 x 53 x 5.5 | 66.52 x 33.24 | -20°C ~ 70°C | 30 / 40 / 30 / 30 | LED | Yellow / Green | 6800.0 | STN | N/A | POS | |
| 2.71" | USMP-S027-128064NEN-A0 | 128 x 64 | 70.2 x 43 x 6 | 55 x 27.48 | 0°C ~ 50°C | 40 / 45 / 45 / 40 | LED | Yellow / Green | SPI | FSTN | N/A | POS | |
| 3.04" | USMP-S030-128064NEN-A0 | 128 x 64 | 72 x 52 x 5.1 | 59.505 x 34.865 | -20°C ~ 70°C | 40 / 45 / 45 / 40 | LED | Blue | SPI | FSTN | N/A | POS | |
| 3.18" | USMP-S032-128064NEN-A0 | 128 x 64 | 93.7 x 53.15 x 5.7 | 66.52 x 33.24 | -20°C ~ 70°C | 45 / 40 / 45 / 55 | LED | White | 6800.0 | STN | N/A | NEG | |
| 3.42" | USMP-S034-160160NEN-A0 | 160 x 160 | 75.5 x 70.5 x 10.4 | 55.985 x 55.985 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 4-bit / 8-bit | FSTN | N/A | POS | |
| 3.94" | USMP-S039-320240NEN-A0 | 320 x 240 | 93.9 x 71.3 x 7.9 | 76.593 x 57.585 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 4-bit / 8-bit | FSTN | N/A | POS | |
| 5.11" | USMP-S051-320240NEN-A0 | 320 x 240 | 134.5 x 117 x 14 | 96 x 72 | 0°C ~ 50°C | 30 / 40 / 40 / 30 | LED | White | 4-bit / 8-bit | FSTN | N/A | POS | |
| 5.15" | USMP-S052-240128NEN-A0 | 240 x 128 | 144 x 104 x 15.8 | 107.95 x 57.55 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 8080.0 | FSTN | N/A | POS | |
| 5.15" | USMP-S052-240128NEN-B0 | 240 x 128 | 144 x 104 x 15.8 | 107.95 x 57.55 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 8080.0 | FSTN | N/A | POS | |
| 5.51" | USMP-S055-240064NEN-A0 | 240 x 64 | 180 x 65 x 14.8 | 127.16 x 33.88 | 0°C ~ 50°C | 40 / 45 / 45 / 40 | LED | Yellow / Green | 8080.0 | FSTN | N/A | POS | |
| 5.51" | USMP-S055-240064NEN-B0 | 240 x 64 | 180 x 65 x 14.8 | 127.16 x 33.88 | 0°C ~ 50°C | 40 / 45 / 45 / 40 | LED | White | 8080.0 | FSTN | N/A | POS | |
| 5.91" | USMP-S059-320024REN-A0 | 320 x 240 | 160 x 109 x 11 | 115.17 x 86.37 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 4-bit / 8-bit | FSTN | RTP | POS | |
| 5.91" | USMP-S059-320240NEN-A0 | 320 x 240 | 167.1 x 109 x 11 | 115.17 x 86.37 | 0°C ~ 50°C | 30 / 40 / 45 / 45 | LED | White | 4-bit / 8-bit | FSTN | N/A | NEG | |
| 5.91" | USMP-S059-320240NEN-B0 | 320 x 240 | 166.6 x 109 x 11 | 115.17 x 86.37 | -20°C ~ 70°C | 30 / 40 / 40 / 30 | LED | White | 4-bit / 8-bit | FSTN | N/A | POS | |
| 5.91" | USMP-S059-320240NEN-C0 | 320 x 240 | 160 x 109 x 11 | 115.17 x 86.37 | 0°C ~ 50°C | 30 / 40 / 45 / 45 | LED | White | 4-bit / 8-bit | FSTN | N/A | NEG | |
| 5.91" | USMP-S059-320240NEN-D0 | 320 x 240 | 160 x 109 x 11 | 115.17 x 86.37 | 0°C ~ 50°C | 30 / 40 / 45 / 45 | LED | White | 4-bit / 8-bit | FSTN | N/A | NEG |
20 of 20 products match your filters. Request a custom configuration
About Our Graphic LCD Displays
USMP sales and engineering teams support efficient integration of Graphic LCDs into OEM product designs. Standard Graphic LCD modules are available in a wide range of colors and resolutions:
Resolutions from 128x64 to 320x240
Multiple resolution options to match your application's graphical requirements, from simple status displays to detailed graphical interfaces.
STN and FSTN glass technologies
STN for cost-effective applications, FSTN (Film-compensated STN) for superior contrast and optical performance with white LED backlights.
Multiple interfaces
SPI for minimal pin count, 6800 parallel for standard integration, 8080 parallel for high-speed data transfer, and 4-bit/8-bit parallel options for flexible microcontroller connectivity.
LED backlighting
Available in white, blue, and yellow/green. Both positive (dark on light) and negative (light on dark) display modes available.
Temperature ranges
Standard (0°C to 50°C) and extended (-20°C to 70°C) operating ranges.
Touch panel option
Select models available with resistive touch panel (RTP) for interactive applications.
Applications
Industrial
Process controllers, equipment panels, factory automation, power meters
Learn moreMedical

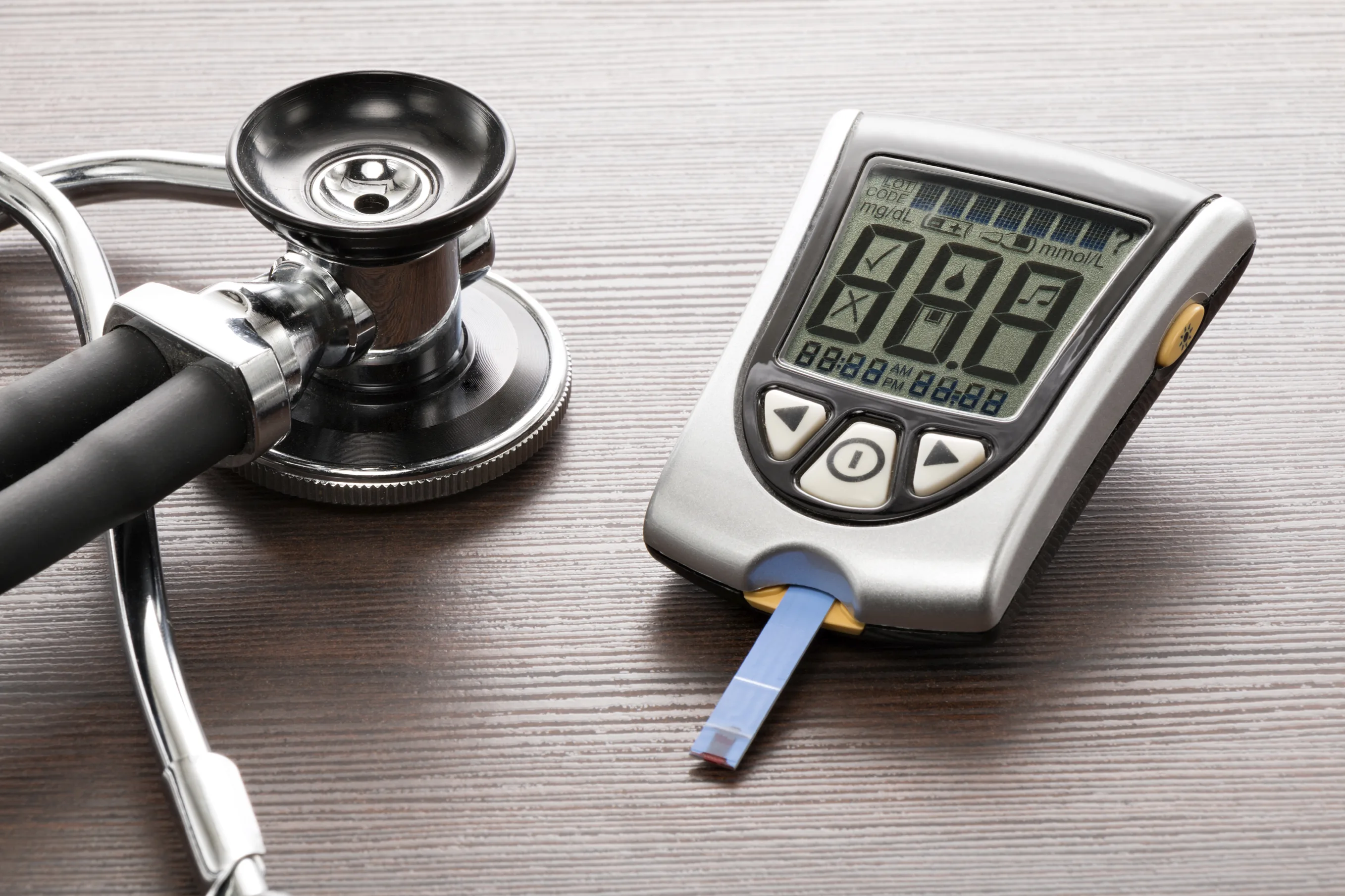

Blood glucose meters, diagnostic equipment readouts, infusion pump interfaces
Learn moreAutomotive
Automotive gauges, dashboard displays, climate control interfaces
Learn moreConsumer
Gas pumps, phones, cameras, toys, appliance controls, audio equipment
Learn moreGaming
Gaming accessories, arcade equipment displays
Learn moreMilitary
Field instrumentation, portable rugged displays
Learn moreWearables
Compact graphical displays for wearable devices
Learn moreKiosk
Point-of-sale terminals, queue management displays
Learn moreAerospace
Cockpit status panels, portable flight instruments
Learn more
Engineering and Supply Chain Solutions for Graphic LCD Displays
From custom configurations to end-of-life replacement, our solutions ensure your graphic LCD integration is supported from prototype through production — with the reliability and price stability procurement demands:
Custom Display Engineering
Tailored graphic LCD modules around optical, mechanical, and electrical requirements.
Learn more
Supply Chain Management
Inventory management and logistics ensuring stable availability and competitive lead times.
Learn more
Touch Screen Integration
Resistive touch panel integration for interactive graphic LCD applications.
Learn more
EOL Display Replacement
Cross-reference and redesign when your current graphic LCD reaches end of life.
Learn moreWhy Choose Us
Why Choose US Micro Products for Graphic LCD
Decades of display engineering expertise, direct manufacturer partnerships, and a relentless focus on your success.
Most cost-effective graphical display
Graphic LCDs deliver full pixel-level control at the lowest cost — ideal for applications that need custom graphics, icons, and multi-language text without the expense of a TFT display.
Easiest displays to design-in
Among the simplest display technologies to integrate, with straightforward interfaces and minimal firmware complexity — reducing your development time and engineering costs.
Designed for harsh conditions
Our graphic LCDs can be specified for extended temperature ranges and demanding environments where reliability directly impacts procurement satisfaction.
Custom Display Solutions
Every module can serve as a starting point for customization around your application requirements.
