Smart Display Modules
Browse 30 smart display modules with integrated controllers from 2.4" to 10.1". STM32, i.MX8M, RTOS and Android/Linux. Simplify HMI development. Request specs today.
What Makes a Display "Smart"
US Micro Products offers 30 smart display modules from 2.4" to 10.1" — complete display solutions with integrated controllers, processors, and communication interfaces that simplify HMI development. For procurement teams, smart displays consolidate multiple components into a single sourcing line item, reducing BOM complexity and supplier management overhead.
Product Catalog
Showing 1–20 of 30 products
| Diagonal Size | Part Number | Resolution | Touch | CPU | MCU/MPU | I/O | OS | Actions |
|---|---|---|---|---|---|---|---|---|
| 10.1" | USMP-M010-102060UBT-A0 | 1024 x 600 | Pcap | STM32F746 | MCU | CAN ,GPIO | RTOS | |
| 10.1" | USMP-M010-102080UAS-A0 | 1280 x 800 | Pcap | PX30 | MPU | USB, Ethernet, Analog Audio, Wi-Fi, Bluetooth, Serial | Android, Linux | |
| 10.1" | USMP-M010-102080UAS-B0 | 1280 x 800 | Pcap | i.MX8M Mini | MPU | USB, Ethernet, Analog Audio, Wi-Fi, Bluetooth, Serial | Android, Linux | |
| 2.4" | USMP-M024-024032UBT-A0 | 240 x 320 | N/A | STM32G0 | MCU | UART, GPIO | RTOS | |
| 3.5" | USMP-M035-032024UAS-A0 | 320 x 240 | Pcap | STM32H750 | MCU | USB, Ethernet, Analog Audio, Wi-Fi, Bluetooth, Serial | RTOS | |
| 3.5" | USMP-M035-032024UAS-B0 | 320 x 240 | Pcap | N32926 | MCU | UART, USB, Serial | RTOS | |
| 3.5" | USMP-M035-032024UBT-A0 | 320 x 240 | Pcap | STM32F750 | MCU | CAN ,GPIO | RTOS | |
| 3.9" | USMP-M039-048012UBT-A0 | 480 x 128 | Pcap | STM32F750 | MCU | CAN, GPIO | RTOS | |
| 3.9" | USMP-M039-048012UBT-B0 | 480 x 128 | Pcap | STM32F750 | MCU | RS485, GPIO | RTOS | |
| 3.9" | USMP-M039-048012UBT-C0 | 480 x 128 | Pcap | STM32F750 | MCU | UART, GPIO | RTOS | |
| 4.3" | USMP-M043-048027UAS-A0 | 480 x 272 | Pcap | STM32H750 | MCU | USB,Serial,RMII | RTOS | |
| 4.3" | USMP-M043-048027UAS-B0 | 480 x 272 | Pcap | N32926 | MCU | UART, USB, Serial | RTOS | |
| 4.3" | USMP-M043-048027UBT-A0 | 480 x 272 | Pcap | STM32U599 | MCU | UART, SD Card, SPI, I2C, RS232/RS485 | RTOS | |
| 4.3" | USMP-M043-048027UBT-B0 | 480 x 272 | Pcap | STM32F750 | MCU | CAN ,GPIO | RTOS | |
| 4.3" | USMP-M043-048027UBT-C0 | 480 x 272 | Pcap | STM32F750 | MCU | RS485 ,GPIO | RTOS | |
| 4.3" | USMP-M043-048027UBT-D0 | 480 x 272 | Pcap | STM32U599 | MCU | UART, SD Card | RTOS | |
| 5" | USMP-M050-080048UAS-A0 | 800 x 480 | Pcap | STM32H750 | MCU | USB, Ethernet, Analog Audio, Wi-Fi,Bluetooth, Serial | RTOS | |
| 5" | USMP-M050-080048UAS-B0 | 800 x 480 | Pcap | N32926 | MCU | UART, USB, Serial | RTOS | |
| 5" | USMP-M050-080048UAS-C0 | 800 x 480 | Pcap | PX30 | MPU | USB, Ethernet, Analog Audio, Wi-Fi, Bluetooth, Serial | Android, Linux | |
| 5" | USMP-M050-080048UAS-D0 | 800 x 480 | Pcap | i.MX8M Mini | MPU | USB, Ethernet, Analog Audio, Wi-Fi, Bluetooth, Serial | Android, Linux |
30 of 30 products match your filters. Request a custom configuration
Processors and Operating Systems
Our smart display catalog includes modules powered by a range of processors to match your application complexity and cost targets:
STM32 series (G0, F746, F750, H747, H750, U599)
ARM Cortex-M based MCUs running RTOS. Ideal for cost-effective, deterministic HMI applications with straightforward interface requirements.
N32926
Embedded processor for mid-range smart display applications.
PX30 and i.MX8M Mini
Application processors running Android or Linux. For complex HMI applications requiring rich graphics, multi-touch, connectivity, and multimedia capabilities.
Communication Interfaces
Smart display modules in our catalog support a range of communication options depending on the processor and application:
UART and GPIO
Standard serial communication for simple command-based HMI control.
CAN and CAN-FD
Industrial and automotive bus interfaces for real-time system integration.
RS232, RS485, RS422
Industrial serial protocols for factory automation and process control.
SPI and I2C
Peripheral bus interfaces for sensor integration and host communication.
USB, Ethernet, Wi-Fi, Bluetooth
Available on Android/Linux modules for connected applications.
SD Card
External storage for GUI assets, logging, or firmware updates.
Why It Matters
Key Advantages
Simplified BOM:
One module replaces display panel, driver board, FPC, frame buffer RAM, and flash storage. One connector, one purchase order — reducing procurement complexity and lead time risk.
Processor Independent:
Communicates via serial protocol — can be driven by any host system. No GPU or display controller requirements on the host side.
Lower Integration Risk:
Display timing, backlight control, and touch calibration are all handled by the module. The host focuses purely on application logic.
RTOS or Android/Linux:
Choose the right operating system for your application — deterministic RTOS for industrial control, or full Android/Linux for rich multimedia HMI.
Touch Options
Capacitive touch (PCAP)
Available on select modules for modern multi-touch HMI interactions.
No touch
For display-only applications where the host system handles all input.
Applications
Industrial

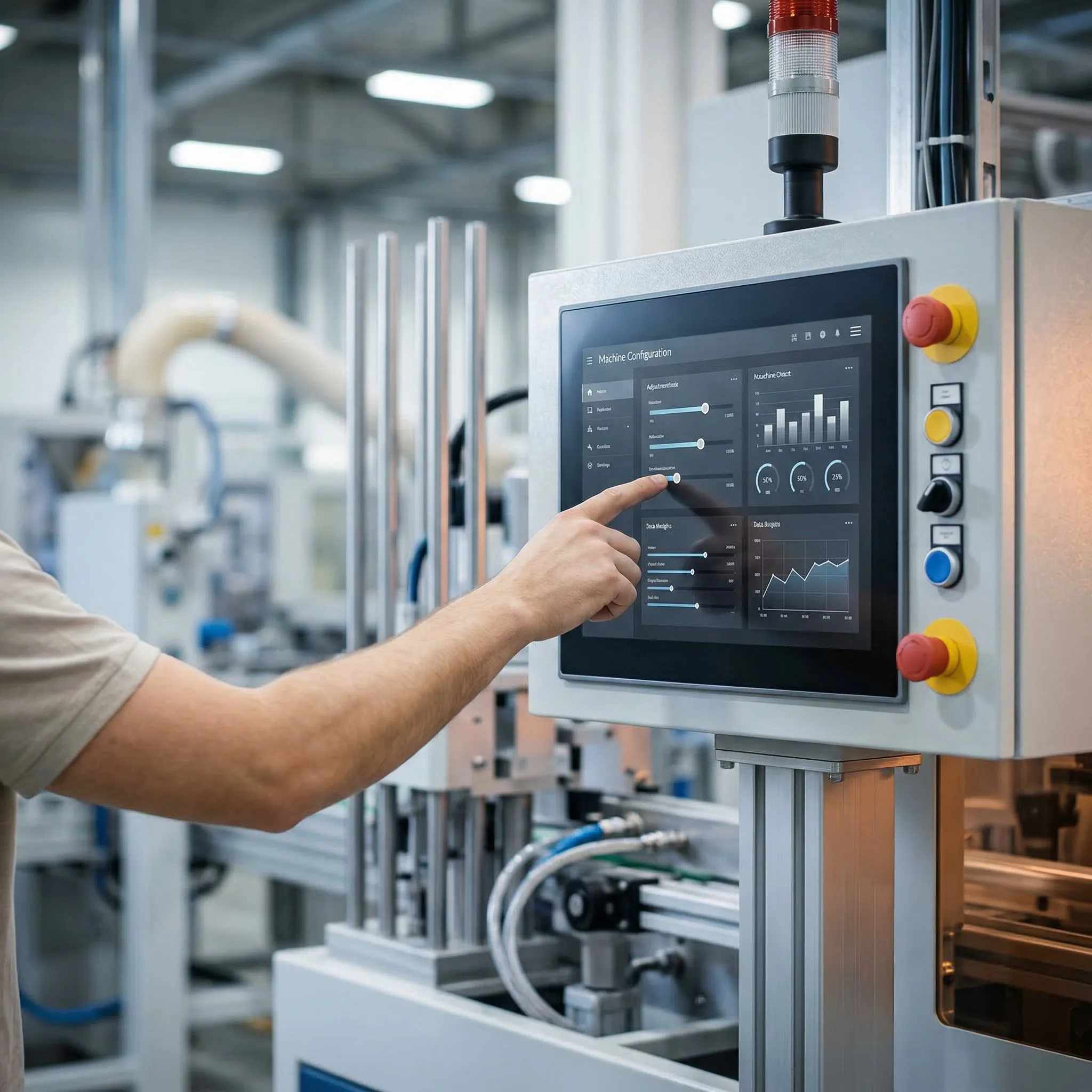

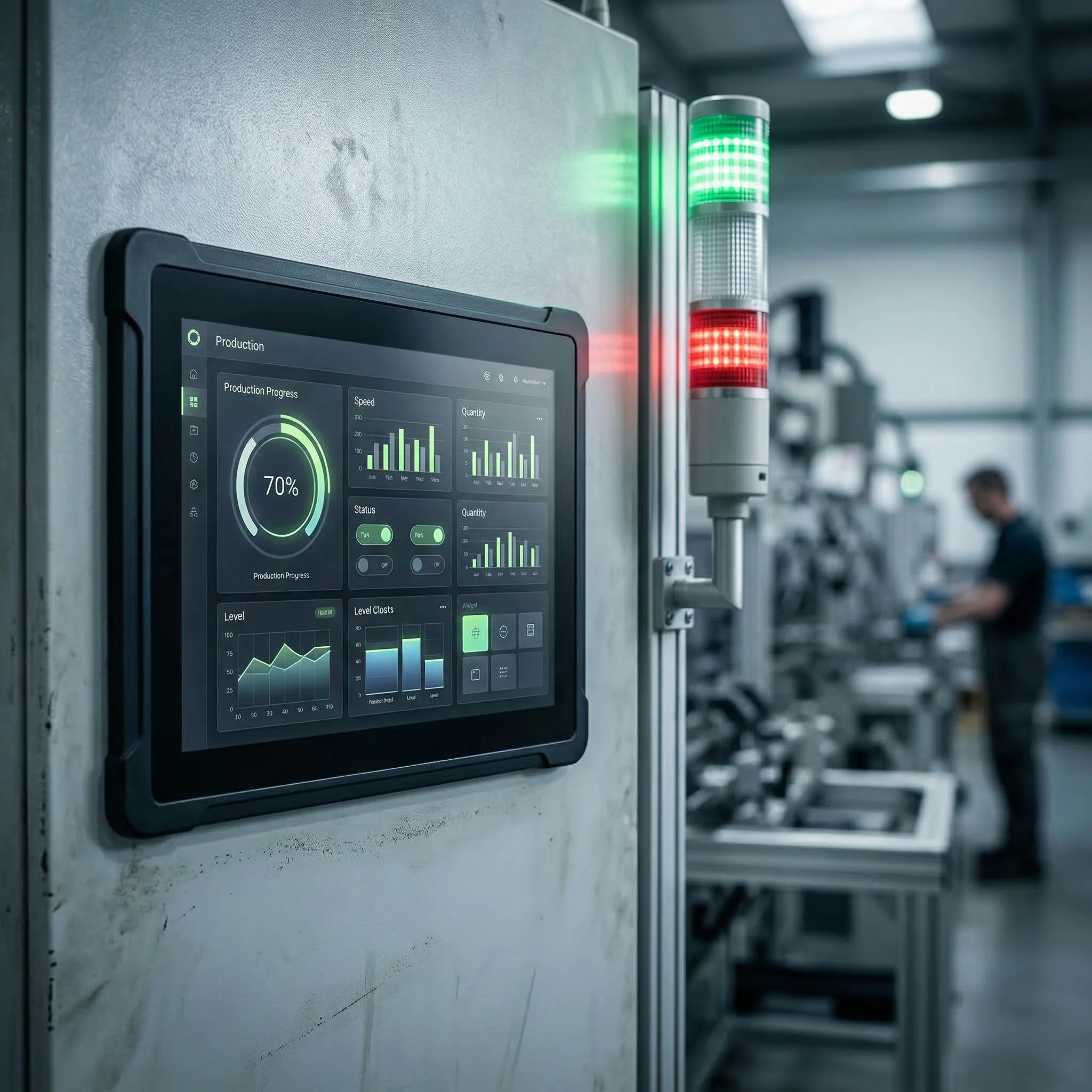

HMI panels, process control interfaces, CNC operator displays, factory automation
Learn moreMedical
Device control panels, patient-facing interfaces, calibration screens
Learn moreAutomotive
Dashboard HMI, in-vehicle displays, diagnostic interfaces
Learn moreConsumer

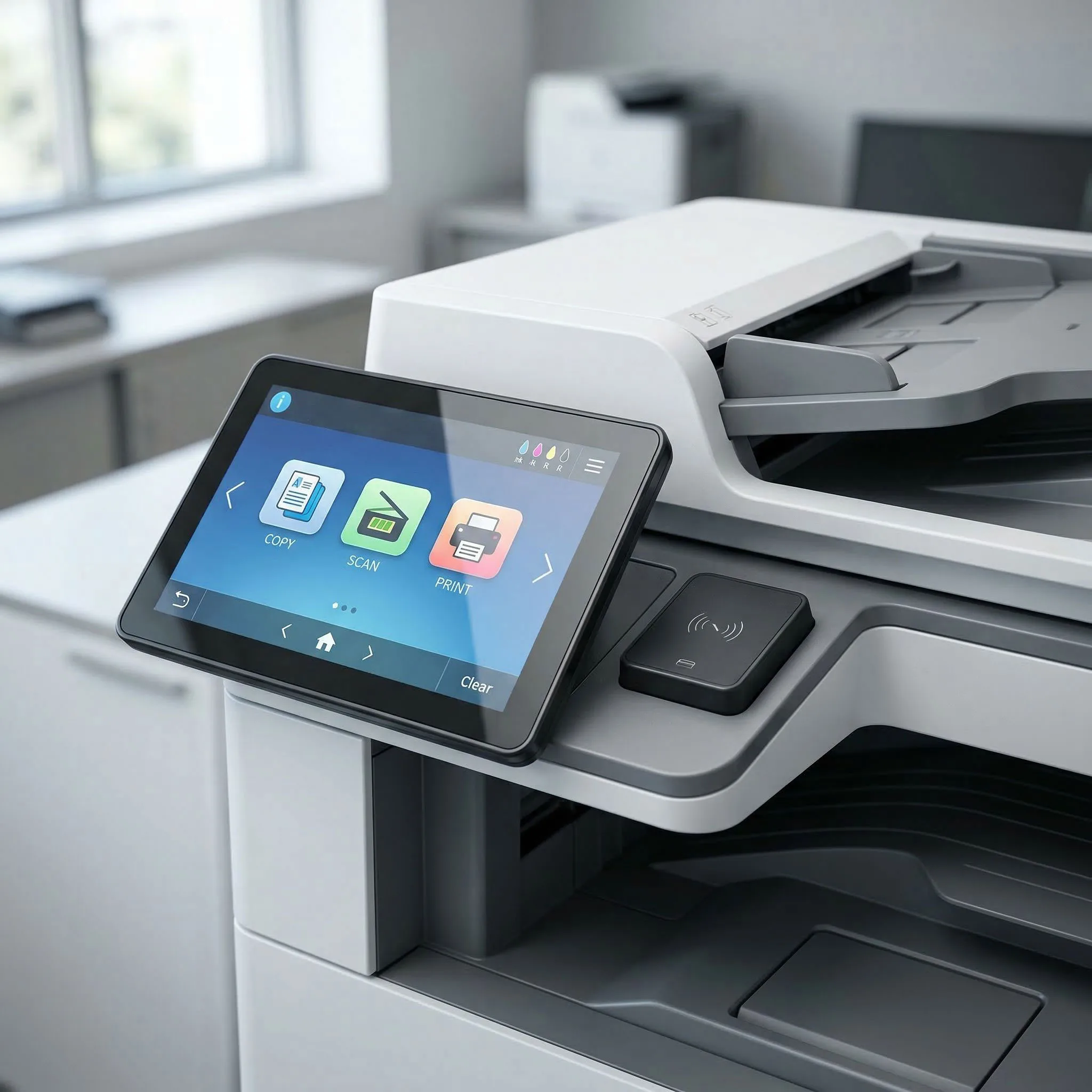

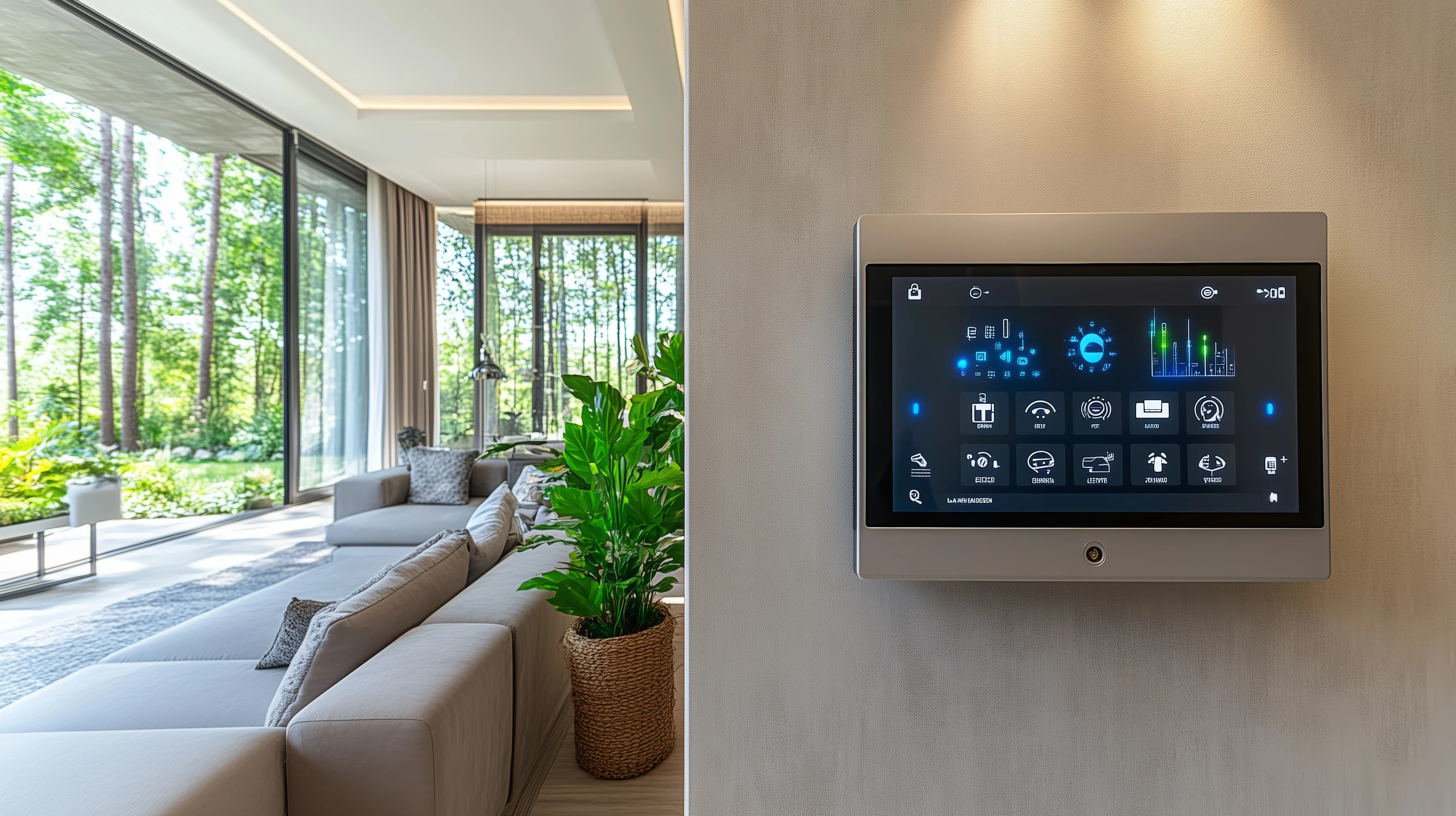

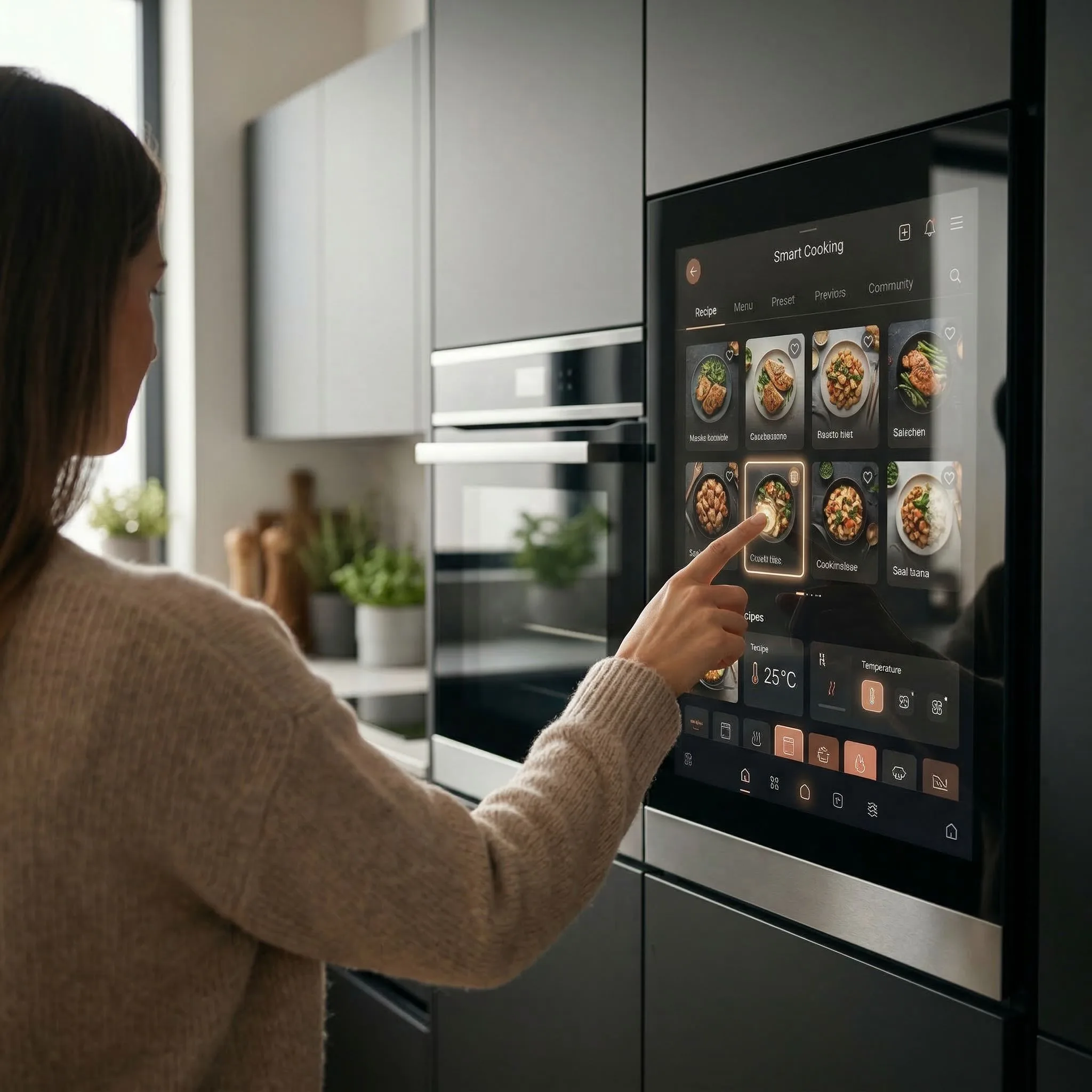

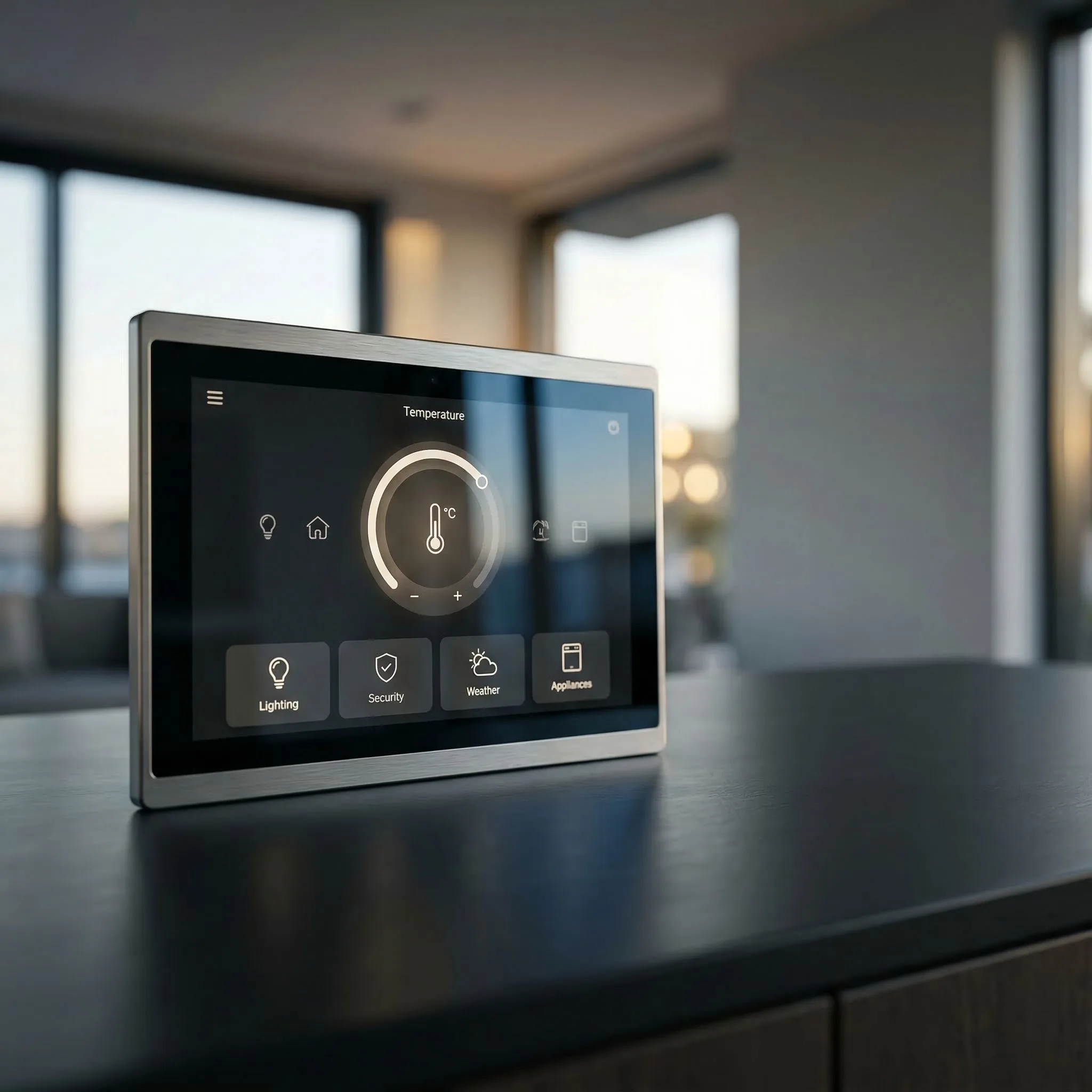

Appliance interfaces, smart home controls, IoT device dashboards
Learn moreKiosk and POS

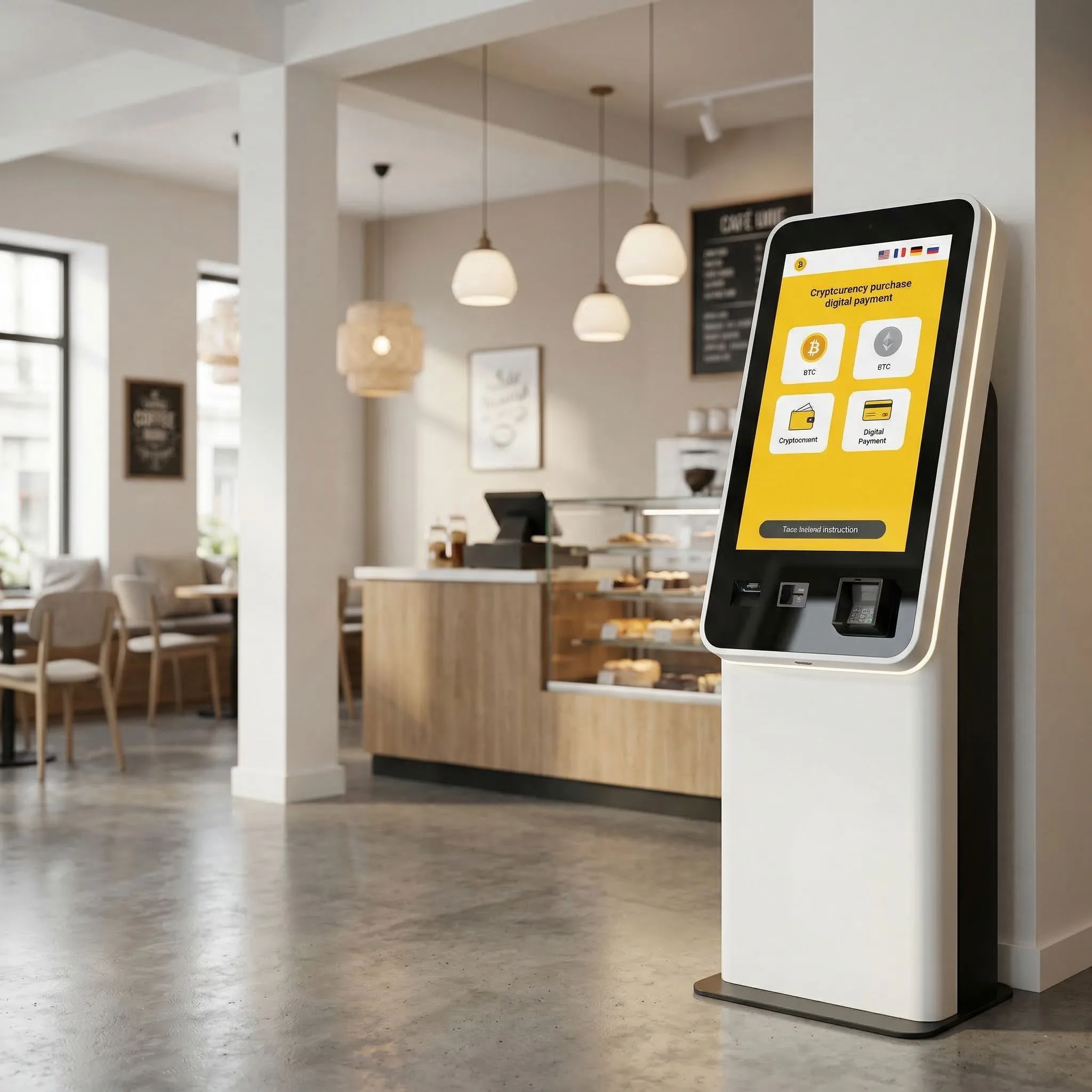

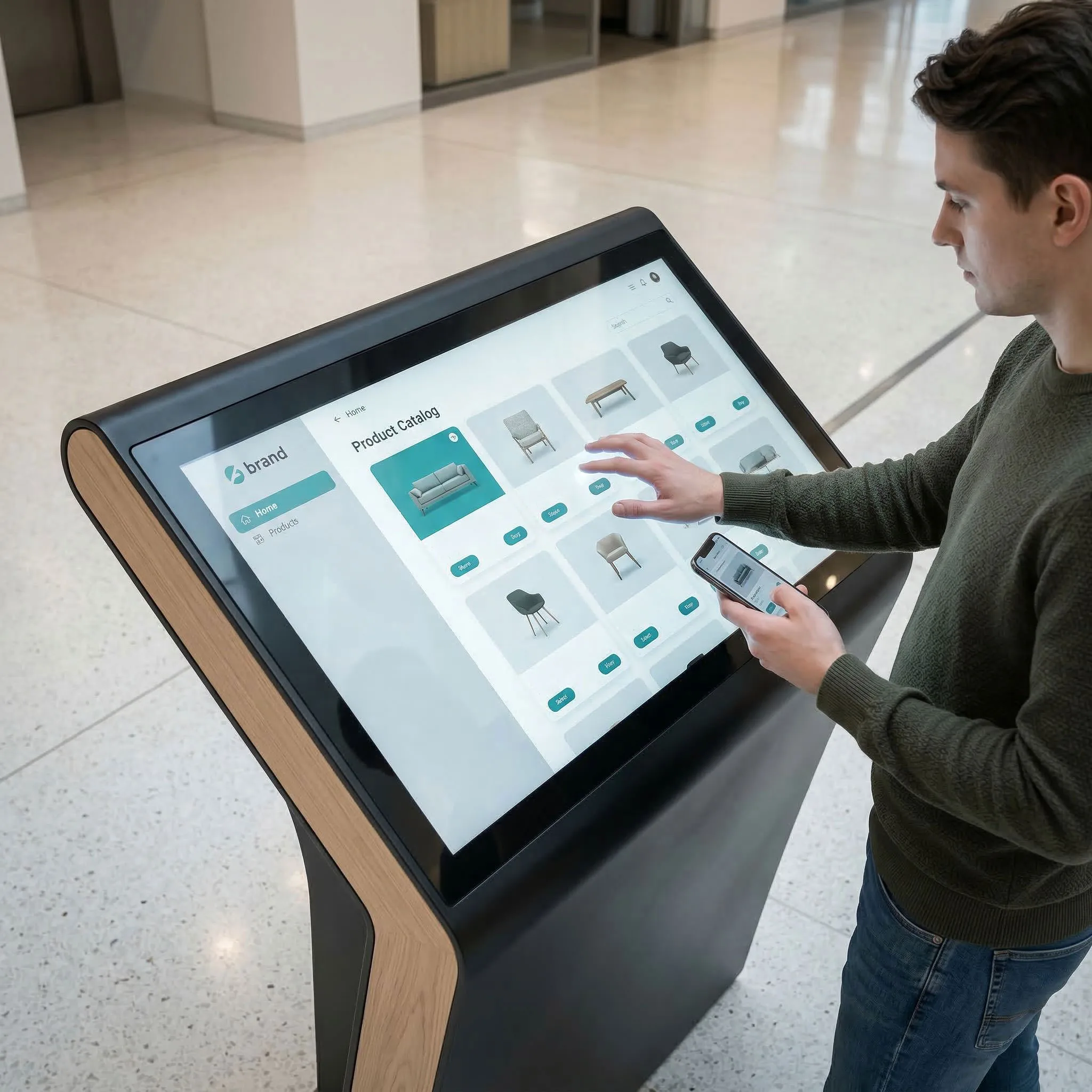

Customer-facing order displays, status screens
Learn more
Engineering and Supply Chain Solutions for Smart Displays
From custom GUI development to supply chain management, our solutions support your smart display integration from prototype through production:
Custom Display Engineering
Tailored smart display configurations around HMI requirements.
Learn more
Display Integration
Custom housing, optical bonding, and turnkey smart display solutions.
Learn more
Supply Chain Management
Inventory management and logistics ensuring stable availability and competitive lead times.
Learn more
Touch Screen Integration
PCAP touch integration for interactive smart display applications.
Learn moreWhy Choose Us
Why Choose US Micro Products for Smart Displays
Decades of display engineering expertise, direct manufacturer partnerships, and a relentless focus on your success.
All-in-one sourcing
Smart displays consolidate display, processor, memory, and interfaces into a single module — simplifying your BOM and reducing the number of suppliers your procurement team manages.
Range of complexity
From simple RTOS-based UART displays to full Android/Linux modules with Wi-Fi, Bluetooth, and Ethernet — we have the right level of smart display for your application.
Engineering support
Our team helps you select the right module based on your interface requirements, processing needs, and environmental specifications.
Reliable supply
Consistent product quality, stable availability, competitive lead times, and long-term price stability for your production needs.
Related Resources
TFT Technology Guide
How thin film transistors enhance LCD operation, eliminate image blurring, and enable thinner designs.
Read the guideTouch Screen Technology
Capacitive, resistive, SAW, and IR touch technologies — selection and integration.
Read the guideLCD Technology Guide
How liquid crystal displays work — polarizers, backlights, TN, STN, IPS panel types.
Read the guideOpen Frame Monitors Guide
What open frame monitors are, components, and where they are used.
Read the guideGlossary of Display Terms
Quick reference for all display technology terminology.
Read the guideFrequently Asked Questions
Smart Display Selection Support
Our engineers evaluate your optical, mechanical, electrical, and environmental requirements to recommend the optimal panel.
Request a Quote
