Products
Open Frame Monitors
Browse 20+ open frame monitors from 7" to 43". Efficient, customizable, reliable. CTP/RTP touch, plug and play. ISO 9001 controlled. Request specs today.
Efficient, Customizable, and Reliable
US Micro Products offers 20+ open frame monitors from 7" to 43", serving OEMs across the wearable, medical, gaming, military, industrial, consumer, kiosk, automotive, and aerospace markets.
Open Frame Monitor Features
Ready for Integration
Standard plug-and-play configuration with accessories and cables included. Supports efficient integration for OEM teams designing TFTs into their products.
ISO 9001 Controlled
ISO 9001 controlled modules with long-term technical support ensure consistent quality. For procurement, this means a reliable source with proven quality and production continuity.
Low Profile, Low Heat
Low profile TFTs with low heat emission simplify enclosure design and extend component life — reducing integration complexity and total cost of ownership.
Serviceable Installation
Designed for straightforward installation and long-term serviceability in embedded fixtures. Supports lower field service costs and efficient production assembly.
Product Catalog
Showing 1–20 of 20 products
| Panel Size | Part Number | Resolution | Brightness | Operating Temp. | Viewing Angle | Touch Screen | Actions |
|---|---|---|---|---|---|---|---|
| 7" | USMP-F070-102060RBZ-B0 | 1024 x 600 | 400 cd/m² | -30°C ~ 85°C | 75 / 75 / 75 / 75 | RTP | |
| 9.7" | USMP-F097-102076CBZ-A0 | 1024 x 768 | 260 cd/m² | 0°C ~ 50°C | 85 / 85 / 85 / 85 | CTP | |
| 10.1" | USMP-F101-128080CBZ-A0 | 1280 x 800 | 300 cd/m² | -20°C ~ 60°C | 85 / 85 / 85 / 85 | CTP | |
| 10.4" | USMP-F104-102076CBZ-B0 | 1024 x 768 | 350 cd/m² | -20°C ~ 70°C | 75 / 75 / 75 / 75 | CTP | |
| 12.1" | USMP-F121-102076CBZ-B0 | 1024 x 768 | 350 cd/m² | -20°C ~ 70°C | 80 / 80 / 80 / 80 | CTP | |
| 15" | USMP-F150-102076CBZ-B0 | 1024 x 768 | 250 cd/m² | -10°C ~ 70°C | 75 / 75 / 75 / 75 | CTP | |
| 15" | USMP-F150-102076RBZ-C0 | 1024 x 768 | 250 cd/m² | 0°C ~ 50°C | 60 / 60 / 50 / 50 | RTP | |
| 15.6" | USMP-F156-192108CBZ-C0 | 1920 x 1080 | 220 cd/m² | 0°C ~ 50°C | 70 / 70 / 60 / 60 | CTP | |
| 17" | USMP-F170-128102CBZ-E0 | 1280 x 1024 | 250 cd/m² | -30°C ~ 85°C | 85 / 85 / 80 / 80 | CTP | |
| 17" | USMP-F170-128102CBZ-F0 | 1280 x 1024 | 250 cd/m² | 0°C ~ 50°C | 85 / 85 / 80 / 80 | CTP | |
| 18.5" | USMP-F185-192108CBZ-B0 | 1920 x 1080 | 350 cd/m² | -20°C ~ 70°C | 89 / 89 / 89 / 89 | CTP | |
| 19" | USMP-F190-128102CBZ-C0 | 1280 x 1024 | 250 cd/m² | 0°C ~ 50°C | 85 / 85 / 80 / 80 | CTP | |
| 19" | USMP-F190-128102CBZ-D0 | 1280 x 1024 | 250 cd/m² | 0°C ~ 50°C | 85 / 85 / 80 / 80 | CTP | |
| 21.5" | USMP-F215-192108CBZ-C0 | 1920 x 1080 | 250 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 21.5" | USMP-F215-192108CBZ-E0 | 1920 x 1080 | 250 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 21.5" | USMP-F215-192108CBZ-F0 | 1920 x 1080 | 250 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 23.8" | USMP-F238-192108CBZ-A0 | 1920 x 1080 | 250 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 27" | USMP-F270-192108CBZ-A0 | 1920 x 1080 | 300 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 32" | USMP-F320-192108CBZ-C0 | 1920 x 1080 | 300 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP | |
| 43" | USMP-F430-192108CBZ-B0 | 1920 x 1080 | 300 cd/m² | 0°C ~ 50°C | 89 / 89 / 89 / 89 | CTP |
20 of 20 products match your filters. Request a custom configuration
What is an Open Frame Monitor?
An Open Frame Monitor (OFM) is a display device mainly situated in a bare metal enclosure and does not usually include a bezel. It is instead typically supplied with an outer metal flange for mounting. Electronic components are fastened to the inside of the metal chassis and are typically items like display controller A/D board, harnessing, and possibly internal power supply. Touch screens of various types can also be applied to an OFM.
Open frame monitors support flexible configuration for many applications through components added to the internal chassis. The flange mounting system supports direct integration into product designs. For procurement teams, this modularity creates a single sourcing line item that can adapt to multiple product designs, reducing supplier management overhead and simplifying the BOM.
Applications
Kiosk and POS
Kiosks, self-service terminals, ATM machines, vending machine displays
Learn moreGaming
Gaming machines, slot machines, video poker, player tracking terminals
Learn moreIndustrial

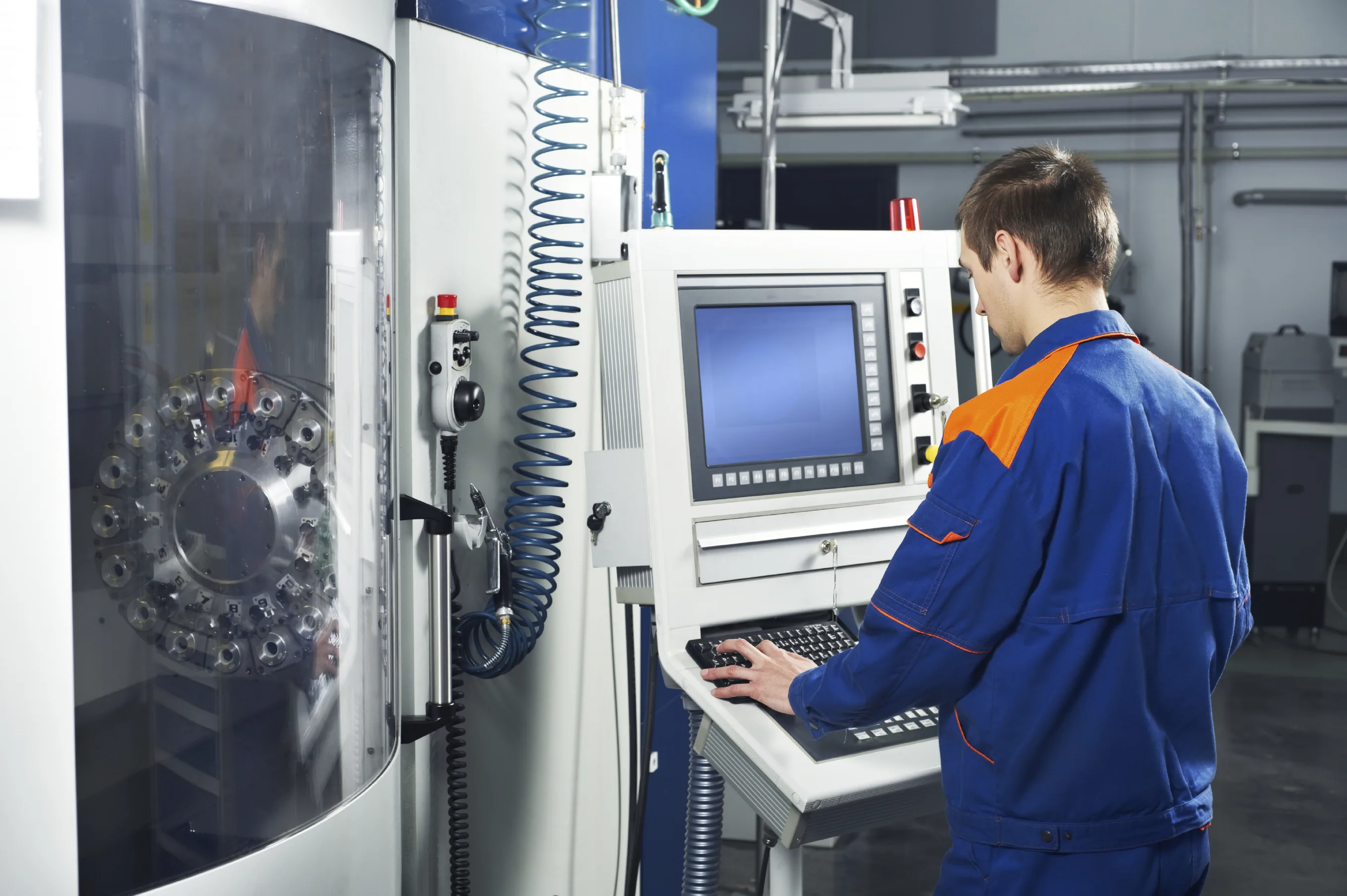

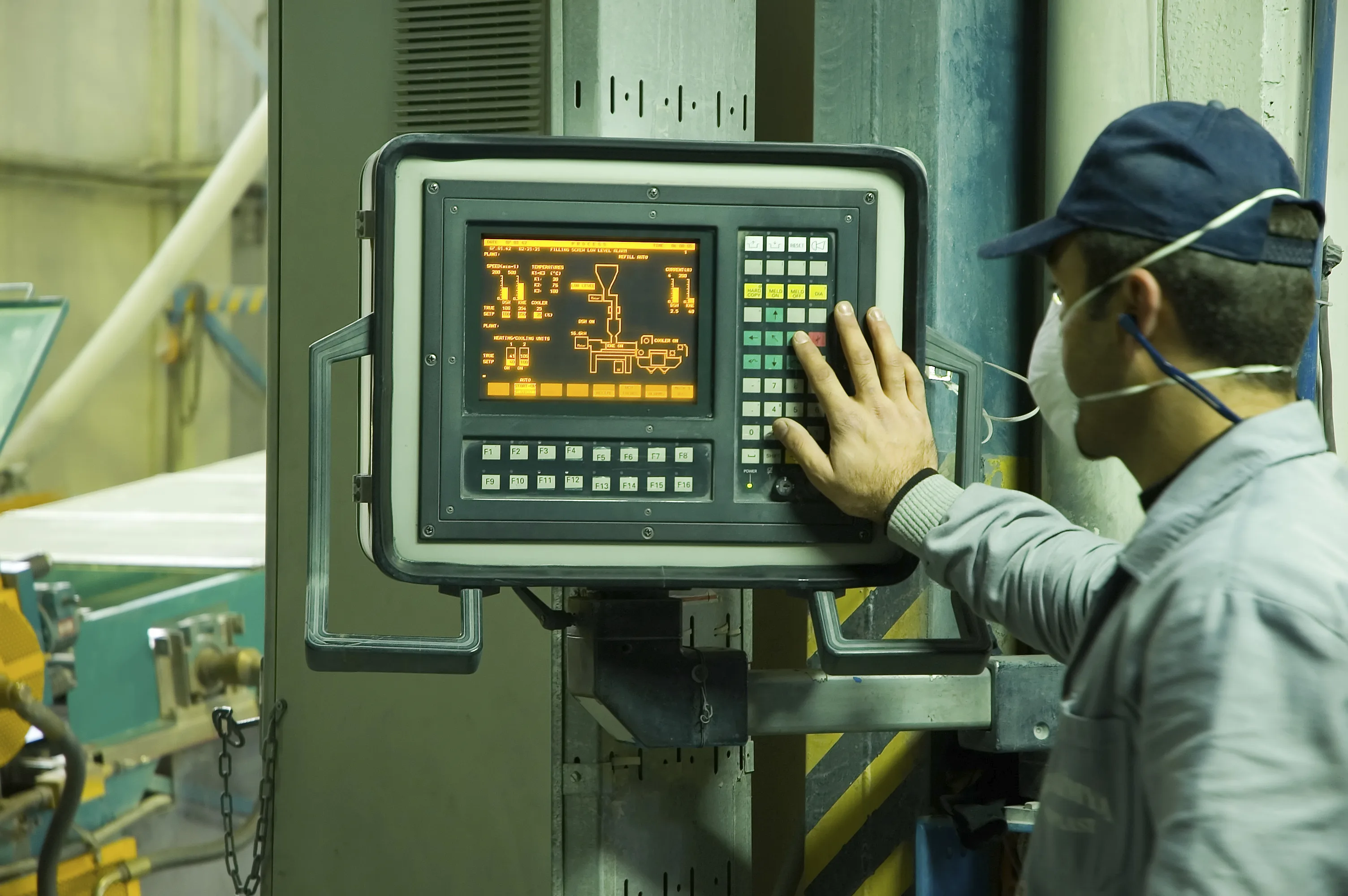

Industrial equipment, operator panels, factory automation, SCADA displays
Learn moreAerospace
Displays for avionics applications, cockpit embedded monitors
Learn moreMedical

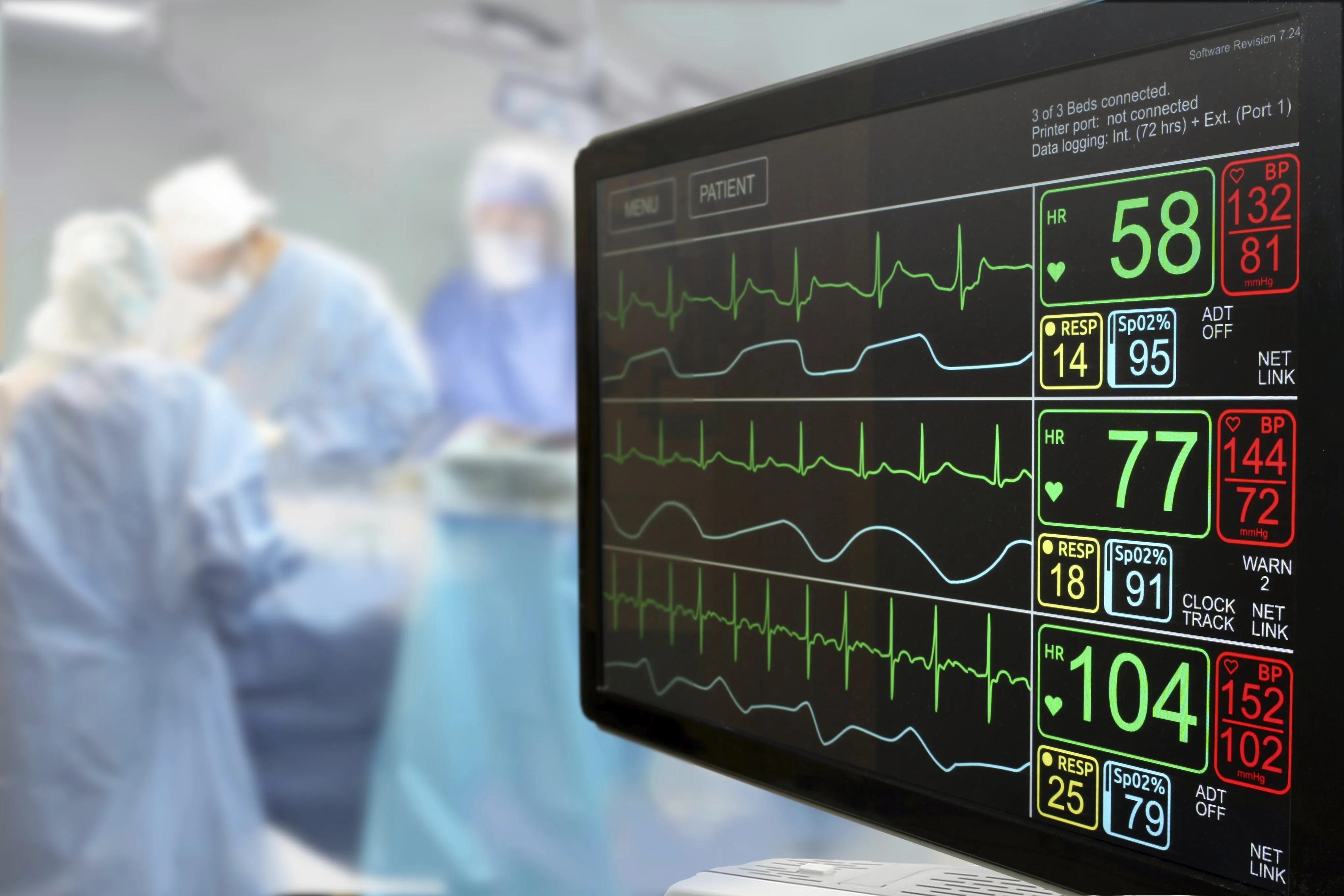

Bedside terminals, pharmacy dispensing, patient-facing displays
Learn moreMilitary

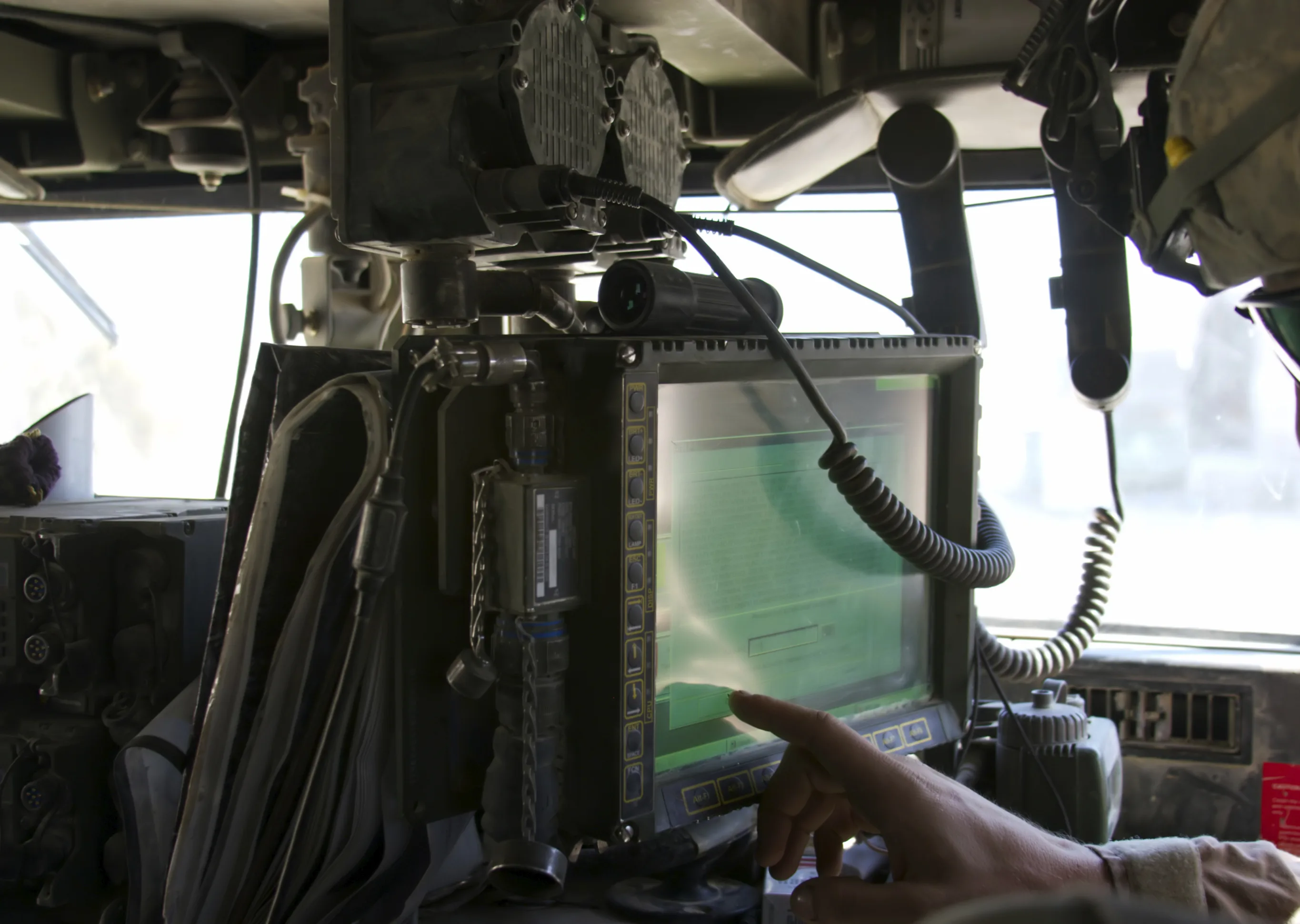

Rugged embedded displays, vehicle-mounted monitors
Learn moreConsumer
Smart home panels, interactive displays
Learn moreAutomotive
In-vehicle embedded displays, diagnostic stations
Learn moreWearables
Compact embedded display modules
Learn more
Engineering and Supply Chain Solutions for Open Frame Monitors
From custom engineering to supply chain management, our solutions support your open frame monitor integration from prototype through production:
Custom Display Engineering
Custom brightness, touch type, interfaces, and mounting around application requirements.
Learn more
Display Integration
Pre-assembled open frame monitors with touch, ready for drop-in installation.
Learn more
Supply Chain Management
Inventory management and logistics ensuring stable availability and competitive lead times.
Learn more
Touch Screen Integration
CTP and RTP touch integration for interactive open frame monitor applications.
Learn more
EOL Display Replacement
Cross-reference and redesign when your current open frame monitor reaches end of life.
Learn moreWhy Choose Us
Why Choose US Micro Products for Open Frame Monitors
Decades of display engineering expertise, direct manufacturer partnerships, and a relentless focus on your success.
Efficient integration
Designed for OEMs that need to integrate TFTs into a product with standard plug-and-play support and included accessories and cables.
ISO 9001 quality
ISO 9001 controlled modules with long-term technical support ensure consistent quality and reliable supply for your procurement needs.
Low profile, low heat
Slim, low heat emission modules simplify your enclosure design and reduce integration complexity.
Straightforward installation and maintenance
Designed for embedded fixtures that require efficient installation and long-term serviceability.
Comparison
Open Frame vs. Enclosed Monitors
Understand the trade-offs to choose the right form factor for your integration.
Open Frame
No Enclosure
Best for: Kiosks, gaming cabinets, POS terminals, custom enclosures, OEM integration
Enclosed Monitor
Complete Housing
Best for: Desktop use, standalone signage, quick deployment without custom housing
Related Resources
Open Frame Monitors Guide
What open frame monitors are, components, and where they are used.
Read the guideTFT Technology Guide
How thin film transistors enhance LCD operation, eliminate image blurring, and enable thinner designs.
Read the guideTouch Screen Technology
Capacitive, resistive, SAW, and IR touch technologies — selection and integration.
Read the guideLCD Technology Guide
How liquid crystal displays work — polarizers, backlights, TN, STN, IPS panel types.
Read the guideGlossary of Display Terms
Quick reference for all display technology terminology.
Read the guideFrequently Asked Questions
Open Display Selection Support
Our engineers evaluate your optical, mechanical, electrical, and environmental requirements to recommend the optimal panel.
Request a Quote
