PMOLED Display Modules
US Micro Products offers 35+ PMOLED display modules from 0.42" to 3.83", serving OEMs across the wearable, medical, gaming, military, industrial, consumer, kiosk, automotive, and aerospace markets.
Why PMOLED is Best in Class
160° Viewing Angles
Consistent visibility from nearly any position — critical for wearable devices and multi-operator environments where the display is viewed from varying angles.
Excellent Grayscale
Smooth gradients and precise brightness control deliver high-quality text, icons, and status graphics with life-like color reproduction.
Wide Selection of Sizes
From 0.42" micro-displays to 3.83" readout panels, with resolutions up to 132 x 320 — ensuring the right fit for your product design.
Superior Durability
Built to withstand the demands of industrial, military, and portable applications where reliability directly impacts procurement satisfaction.
Low Operating Voltages
Reduced power requirements simplify your power supply design and lower system-level BOM costs — a direct advantage for cost-conscious procurement.
Long Lifetimes
Reliable performance over extended operating periods for products with long service life requirements, reducing replacement costs and field failures.
Wide Temperature Range
Suitable for applications exposed to environmental extremes — from cold storage to hot industrial environments where standard displays may fail.
Product Catalog
Showing 1–20 of 36 products
| Size | Part Number | Panel Size | Resolution | Color | Bonding | IC | Interface | Actions |
|---|---|---|---|---|---|---|---|---|
| 0.42" | USMP-P004-072040WBI-C0 | 12 x 11 | 72 x 40 | White | COG | SSD1315 | I2C | |
| 0.5" | USMP-P005-048088WBI-B0 | 8.928 x 17.1 | 48 x 88 | White | COG | CH1115 | I2C | |
| 0.49" | USMP-P005-064032WBI-B0 | 14.5 x 11.6 | 64 x 32 | White | COG | SSD1315 | I2C | |
| 0.58" | USMP-P006-082001RBI-A0 | 27.95 x 21.7 | 82+1 ICON | Red | COG | PT6892 | SPI, I2C | |
| 0.69" | USMP-P007-016096WBI-A0 | 6.9 x 24 | 16 x 96 | White | COG | SSD1312 | I2C | |
| 0.71" | USMP-P007-048064WBI-A0 | 13.9 x 22 | 48 x 64 | White | COG | SSD1306BZ | SPI | |
| 0.66" | USMP-P007-064048WBI-C0 | 16.42 x 16.9 | 64 x 48 | White | COG | SSD1315 | Parallel, SPI, I2C | |
| 0.73" | USMP-P007-088128WBI-A0 | 14.6 x 22.34 | 88 x 128 | White | COG | SH1107 | SPI, I2C | |
| 0.78" | USMP-P008-080128WBI-A0 | 12.13 x 23.6 | 80 x 128 | White | COG | SH1107 | SPI | |
| 0.91" | USMP-P009-128032WBI-B0 | 8.58 x 28.54 | 32 x 128 | White | COG | CH1115 | I2C | |
| 0.96" | USMP-P010-064128LBI-B0 | 14.86 x 28.4 | 64 x 128 | Full color | COG | SSD1357 | Parallel, SPI | |
| 0.95" | USMP-P010-096064LBI-A0 | 24 x 20.5 | 96 x 64 | Full Color | COG | SSD1357 | Parallel, SPI, I2C | |
| 0.96" | USMP-P010-096096WBI-C0 | 24 x 25.7 | 96 x 96 | White | COG | SSD1317 | SPI | |
| 1.04" | USMP-P010-128032LBI-A0 | 33.4 x 14.5 | 128 x 32 | Full Color | COG | SSD1537Z | Parallel | |
| 0.96" | USMP-P010-128064WBI-A0 | 24.74 x 16.9 | 128 x 64 | White | COG | SSD1315Z | SPI, I2C | |
| 1.1" | USMP-P011-096064MBI-A0 | 29 x 21 | 96 x 64 | White | COF | SSD1325 | Parallel, SPI | |
| 1.12" | USMP-P011-096096LBI-A0 | 25.8 x 30.1 | 96 x 96 | Full color | COG | SSD1351 | Parallel, SPI | |
| 1.29" | USMP-P013-128064WBI-A0 | 32.42 x 21.36 | 128 x 64 | White | COG | SSD1315 | Parallel, SPI, I2C | |
| 1.29" | USMP-P013-128096LBI-B0 | 33 x 25.8 | 128 x 96 | Full color | COF | SSD1351UR1 | Parallel, SPI | |
| 1.32" | USMP-P013-128096WBI-A0 | 32.5 x 29.2 | 128 x 96 | White | COG | SSD1327 | Parallel, SPI, I2C |
36 of 36 products match your filters. Request a custom configuration
Color Options
Monochrome white
Available across most sizes. Highest brightness for general-purpose status displays and readouts.
Monochrome yellow
High visibility for warning indicators, industrial readouts, and status panels.
Monochrome red
Available on select icon and character display modules.
Yellow and white dual-color
Two-zone color for status differentiation without a full-color driver.
Full color RGB
Available on select modules for graphics-capable applications requiring life-like color reproduction.
Custom Engineering
Customization Options
Custom FPC length, routing, and connector type
Cover glass with custom printing or protective lens
Pin-compatible replacements for legacy OLED modules
Custom brightness levels and drive current optimization
Our engineers will evaluate your requirements and recommend the optimal configuration.
Applications

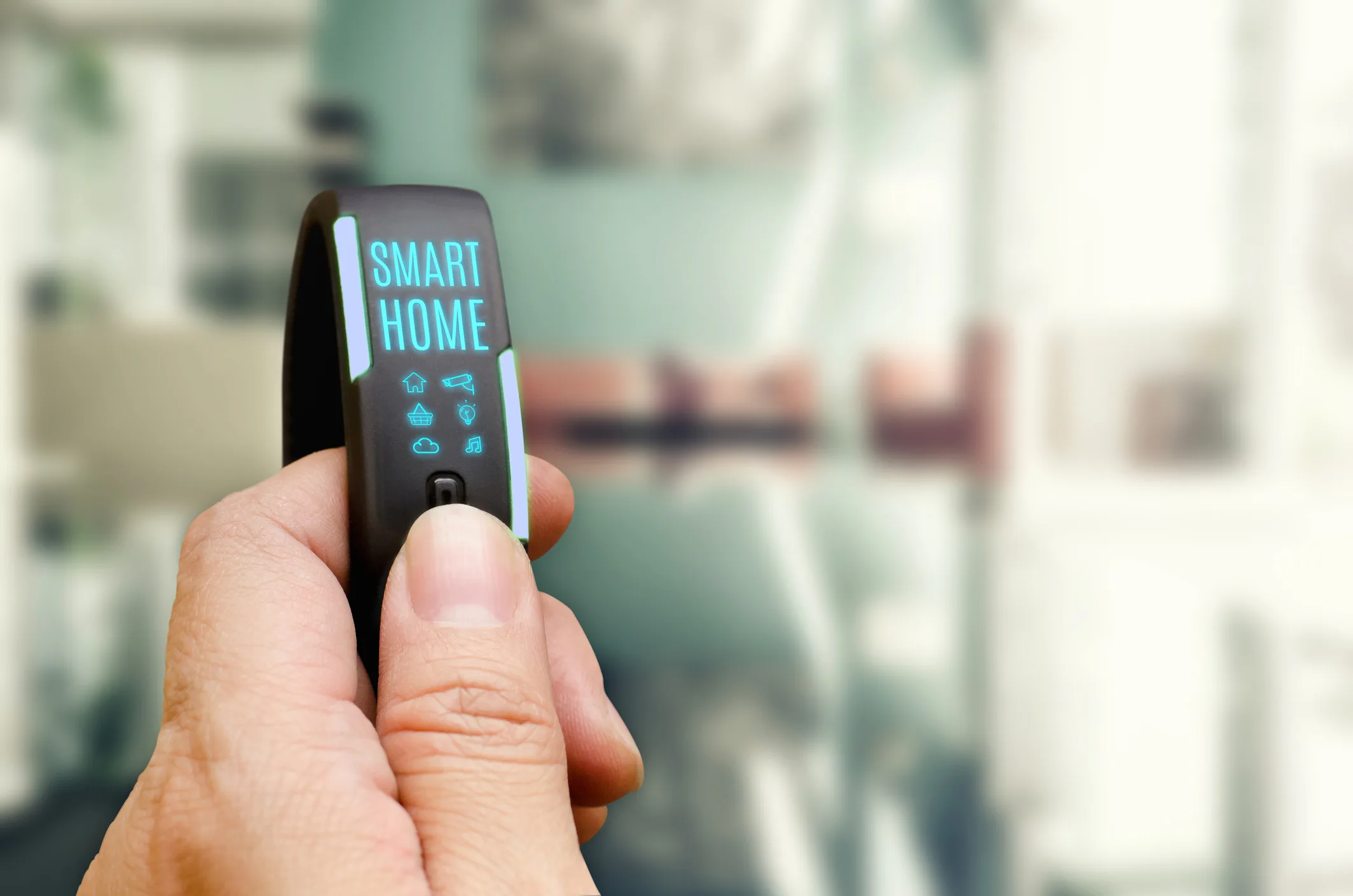

Wearables
Fitness bands, smart badges, hearing aid displays
Learn moreMedical

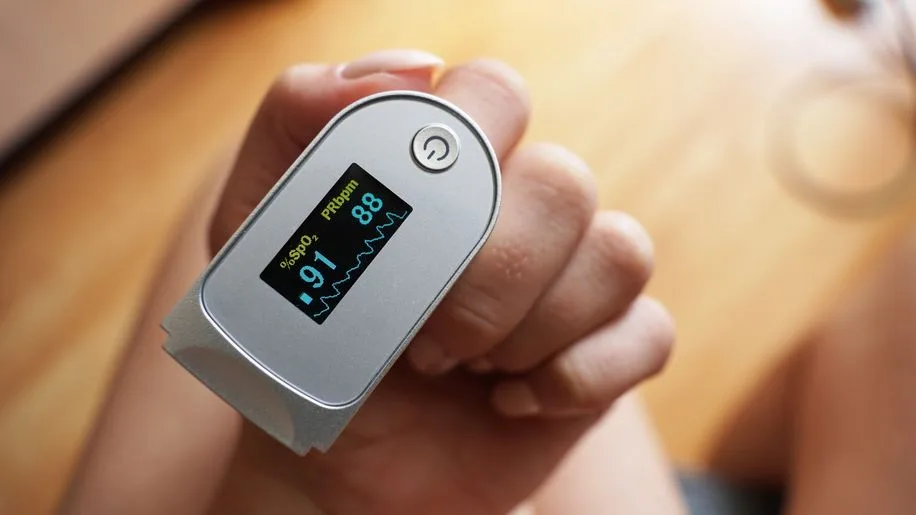

Pulse oximeters, glucose monitors, portable diagnostic readouts
Learn moreGaming
Handheld gaming accessories, controller status displays
Learn moreMilitary
Wrist-mounted computers, field instruments
Learn moreIndustrial

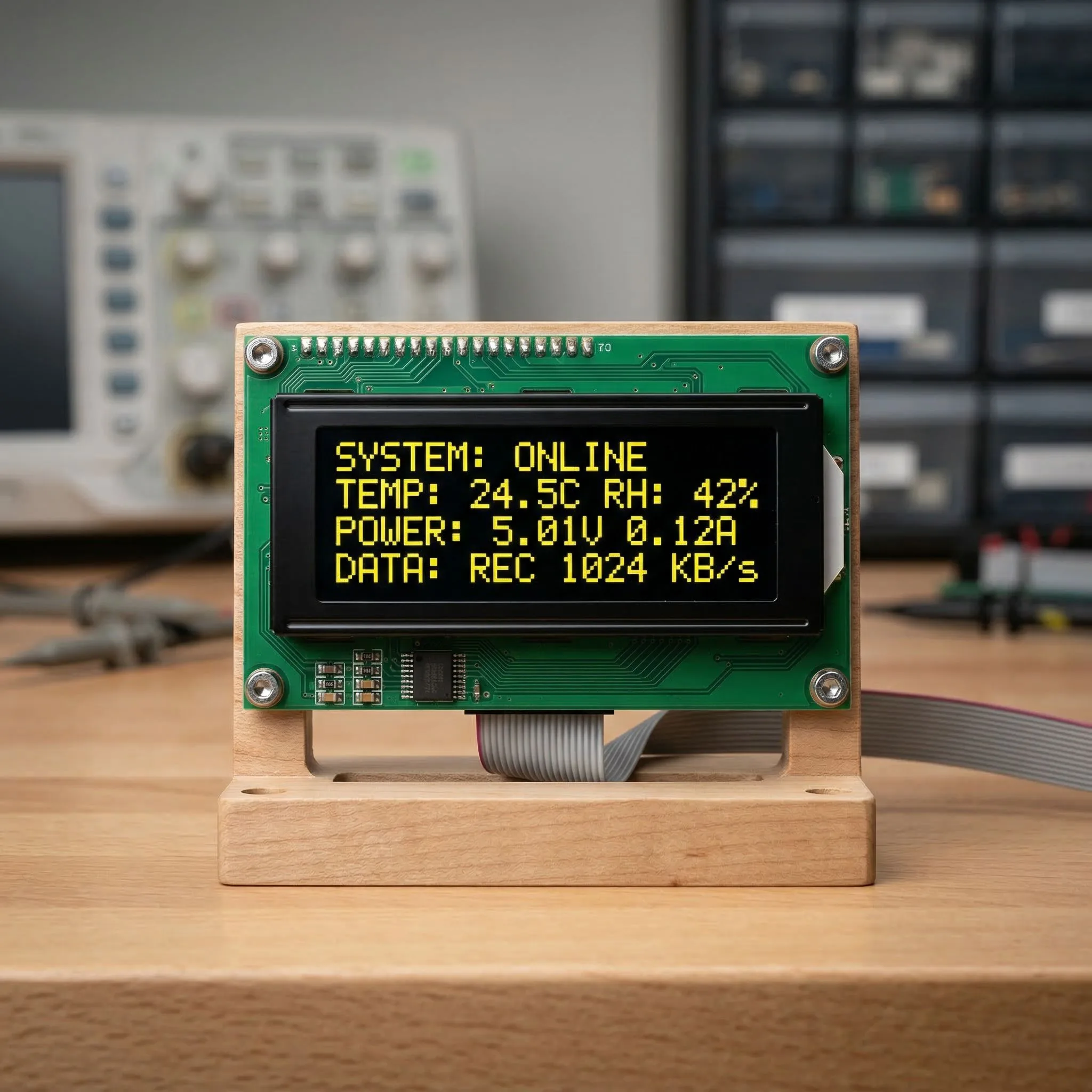

Sensor readouts, equipment status panels, portable instruments
Learn moreConsumer
Audio equipment, smart home controls, IoT status displays
Learn moreKiosk
Secondary status displays, queue management indicators
Learn moreAutomotive
Dashboard indicators, climate control readouts
Learn moreAerospace
Cockpit status displays, portable flight instruments
Learn more
Engineering and Supply Chain Solutions for PMOLED Displays
Custom optical configurations, integration, and EOL replacement support PMOLED programs from prototype through production:
Custom Display Engineering
Tailored PMOLED displays around optical, mechanical, and electrical requirements.
Learn more
Display Integration
Cover glass bonding, custom housing, and module assembly for turnkey PMOLED solutions.
Learn more
Supply Chain Management
Inventory management and logistics ensuring stable availability and competitive lead times.
Learn more
EOL Display Replacement
Cross-reference and redesign when your current PMOLED display reaches end of life.
Learn moreWhy Choose Us
Why Choose US Micro Products for PMOLED
Decades of display engineering expertise, direct manufacturer partnerships, and a relentless focus on your success.
Breadth of selection
With 35+ standard PMOLED modules from 0.42" to 3.83" — monochrome white, yellow, red, dual-color, and full RGB — you start from a strong baseline before any customization.
Budget-friendly OLED quality
PMOLED delivers the visual advantages of OLED — true blacks, high contrast, wide viewing angles — at a price point that keeps procurement competitive.
Rit Display partnership
Our PMOLEDs are manufactured by Rit Display, ensuring consistent quality, reliable supply, and long-term production availability.
Custom Display Solutions
Every module in our catalog can serve as a starting point for customization around your application requirements.
Technology Comparison
PMOLED vs. AMOLED
Two OLED technologies, different strengths. Choose the right one for your application.
PMOLED
Passive Matrix OLED
Best for: Wearables, instrumentation, IoT status displays, battery-powered devices with simple UI

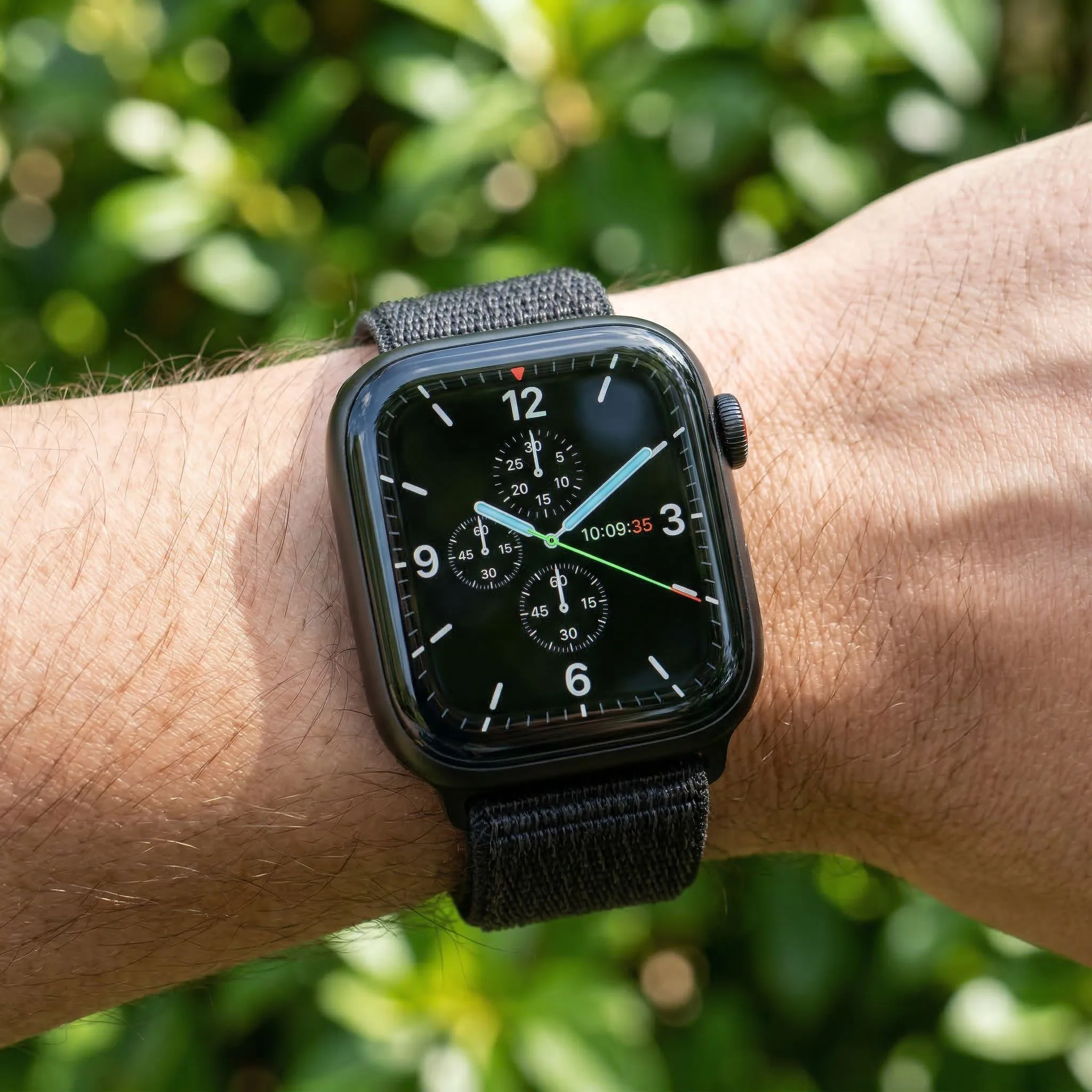

AMOLED
Active Matrix OLED
Best for: Smartphones, smartwatches, medical monitors, military HUDs, premium consumer devices
