Engineered OLED Solutions

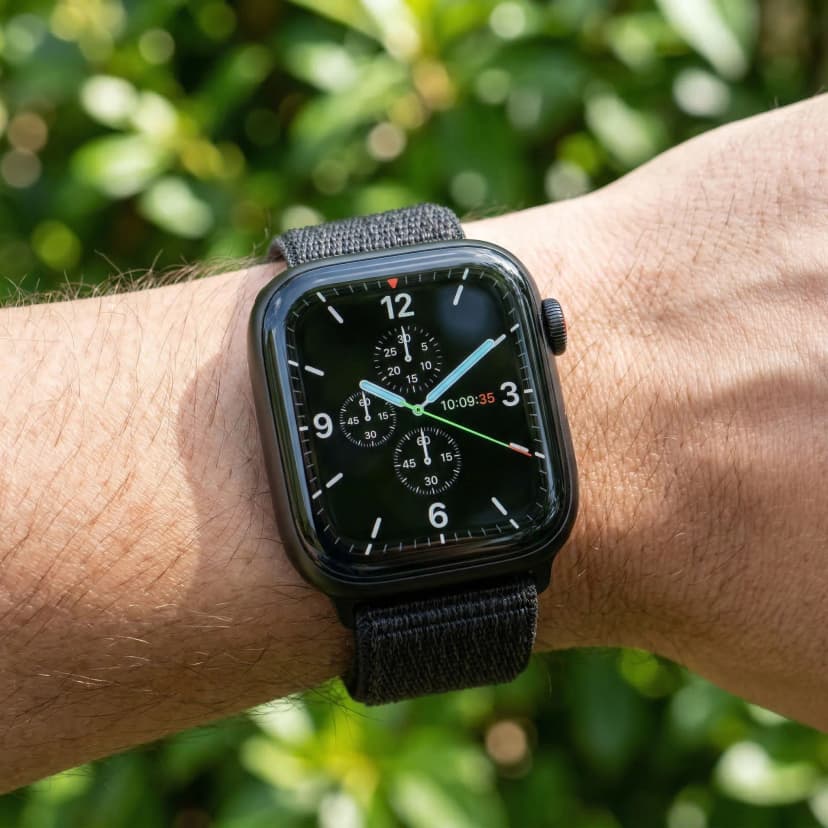

Custom AMOLED Displays
An AMOLED (Active-Matrix OLED) is a thin-film-display technology that contains a layer of organic compounds that light up when hit with an electrical current. They are self-emissive, meaning they don't need a backlight. AMOLEDs consume less power than PMOLEDs, have faster refresh rates, and allow building larger displays with higher resolutions. AMOLEDs are also more complicated and expensive to fabricate.
Size Range
0.39" ~ 6"
Max Resolution
Up to 3840x2160 UHD
Contrast
Strong off-the-shelf
Viewing Angle
Strong off-the-shelf
Connector
Soldering, ACF, Connector
Shape
Round, rectangular, square
Advantages
Considerations
When Should You Consider Creating a Custom Display?
Your new design requires application-specific changes that justify moving beyond a standard display
You already have a design and need a display that matches it
Many projects begin with a standard off-the-shelf product and then move to targeted changes once application requirements are clear.
Customizations We Offer
Panel
0.39" ~ 6"
Up to 3840x2160 UHD
Customizable
Very high color gamut
Optional
Strong off-the-shelf contrast ratio
Strong off-the-shelf viewing angles
Customizable
Soldering, ACF bonding, Connector
Customizable
Criteria specified by customer
Criteria specified by customer
Round, rectangle, square
Available for low temperature operation
High brightness options
Change shape, add double-side tape, other customizations
Cover
Custom printing options
Plastic or glass
AR, AG, HC coatings
Custom thickness, hardness, transmittance
Custom shapes, drill holes
Black mask, logo, icon, color
Bezel
Metal or plastic
Customizable
Customizable
Customizable
Touch
GG (glass on glass), GFF, GF, DITO, SITO, On-cell, In-cell
Single, multi, or gesture
I2C, USB
Bonding
Air, optical, or nano bonding
OCA or OCR
Interface bridge, LED driving, DC-DC
Others
Printed circuit board assembly
8080, SPI, I2C
Voltage conversion
Applications
Why Choose US Micro Products?
Reliable Source
End-to-end custom AMOLED management — design, validation, production, and lifecycle. One team, one source.
Reliable Product
Every custom AMOLED passes EDSP validation — EVT, DVT, PVT — before reaching your production line.
Competitive Price
Designs optimized for manufacturability and strong display performance at a competitive total cost of ownership.
Frequently Asked Questions
What are the advantages of AMOLED?
High resolution, rich colors, true blacks, wide viewing angles, high contrast, fast response time, very thin profile, good sunlight readability, and low power consumption.
What are the disadvantages of AMOLED?
Higher cost compared to LCD and PMOLED, high cost for customizations, and currently limited to smaller sizes. AMOLEDs are more complicated and expensive to fabricate.
What sizes are available for custom AMOLED?
Custom AMOLED displays range from 0.39 inch to 6 inches diagonal, with resolutions up to 3840x2160 UHD. Shapes include round, rectangle, and square.
What is the difference between AMOLED and PMOLED?
AMOLEDs consume less power than PMOLEDs, have faster refresh rates, and allow building larger displays with higher resolutions. However, AMOLEDs are more complicated and expensive to fabricate. PMOLEDs are simpler and more cost-effective for small displays under 3 inches.
All custom displays follow our Engineered Display Solution Process (EDSP) — from technology selection through EVT, DVT, PVT, and mass production.
Ready to Start Your Custom Project?
Our display engineers can guide the customization process and help identify a solution that fits your product, sourcing needs, and production path.
Request a Quote
