USMP-P032-256064WBI-A0

You are here

3.2" White PMOLED
Currently Available in Stock:
0
Weight:
11.03 g
Dimensions:
2.01 × 87.4 × 51.3 in

Specifications

Part Number: USMP-P032-256064WBI-A0
Diagonal Size:
3.2"
Resolution:
256x64
Color:
W
Brightness:
70
Contrast:
2000
Size:
87.4 x 28.5
Active Area (mm):
79.08 x 19.76
Dot Size (mm):
0.289 x 0.289
Dot Pitch (mm):
0.309 x 0.309
Thickness:
2.01
IC:
SSD1322
Interface:
Parallel, SPI
Connection Method:
Connector
Bonding:
COF

Applications

  • Gaming
  • Medical Equipment
  • Consumer Electronics
  • Testing Equipment
  • Media Consoles
  • Home Appliance

Features

  • Vibrant Colors
  • True Blacks
  • 160º Viewing Angle
  • Low Power Consumption
  • Thin and Lightweight
  • High Contrast
  • Excellent Grayscale
  • Low Operating Voltages

Description

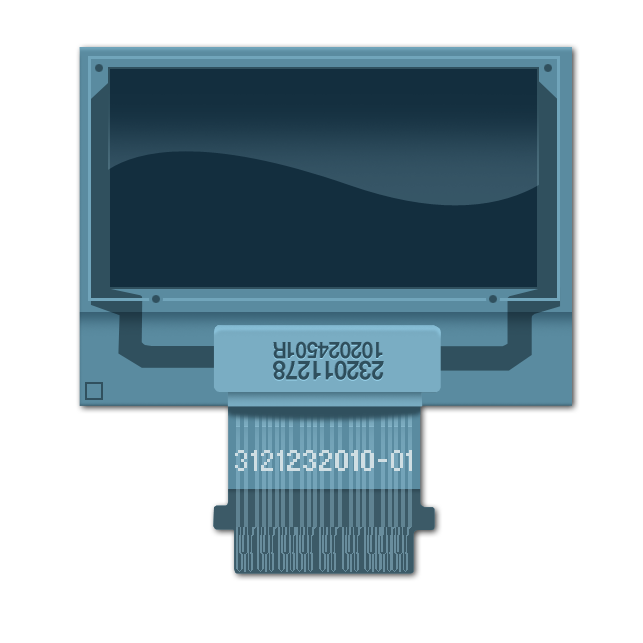

The USMP-P032-256064WBI-A0 is a 3.2" White Passive Matrix OLED (PMOLED). Our PMOLEDs offer life-like color reproduction with high contrast and wide viewing angles. PMOLEDs are self-emissive which eliminates the need for a backlight. This makes their power consumption far lower than LCD modules and allows them to be ideal for portable battery operated applications.
