USMP-8100

Description:
The USMP-8100P Thermal Kiosk Printer incorporates the newest technology into a compact and lightweight design.

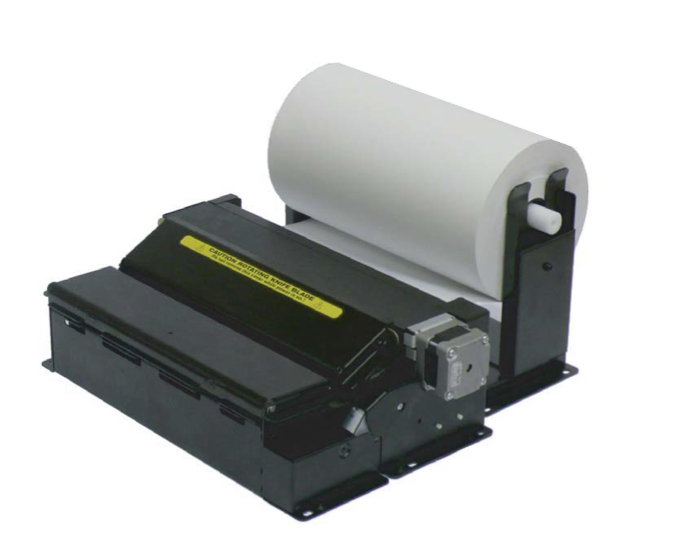

Picture:
Printing Method:
Direct Thermal Printing
Resolution:
200 dpi (8dots/mm), 300dpi (12dots/mm)
Printing Speed:
50mm/sec, 100mm/sec, (125mm/sec@70% Density)
Printing Width:
210mm
Interfaces:
USB and Serial (RS232C)
Power Required:
24VDC/8A@200dpi, 24VDC/10A@300dpi
Paper Type:
Thermal Paper
Paper Width:
210mm (A4) , 216mm (US Letter)
Paper Roll O.D:
O.D 200mm (8inch Paper Roll)
Drivers:
Windows 2000/XP Drivers with Status Monitoring
Operating Temperature:
5ºC~40ºC
Storage Temperature:
-10ºC~60ºC
Storage Humidity:
10%~90%
Dimensions (WxDwH):
303x181x90
Weight:
Approx 3.1Kg
Type:
Kiosk
Features:
  • 200 or 300 dpi Resolution
  • 100 mm/sec Print Speed
  • Loop Style Presenter with Retract Feature
  • USB, Serial Interface
  • Complete Error Detection
  • Simple Installation
  • Windows Drivers Available
  • 8” Diameter Paper Roll Holder
  • Compact Size, Lightweight
  • 4MB Memory / 2MB Buffer
  • 32 RISC Chip
  • LOW COST
Benefits:

The USMP-8100P Thermal Kiosk Printer incorporates the newest technology into a compact and lightweight design.    With a unique anti-paper roll-up sensor and auto cutter, this printer is the perfect low cost solution for Kiosks, ATMs and Medical Equipment, as well as many other applications.

Applications:
  • Kiosks
  • Medical Equipment
  • Labels
  • Tickets
  • ATM
Datasheet:
